产品中心

Home > Products

CATEGORIES

view

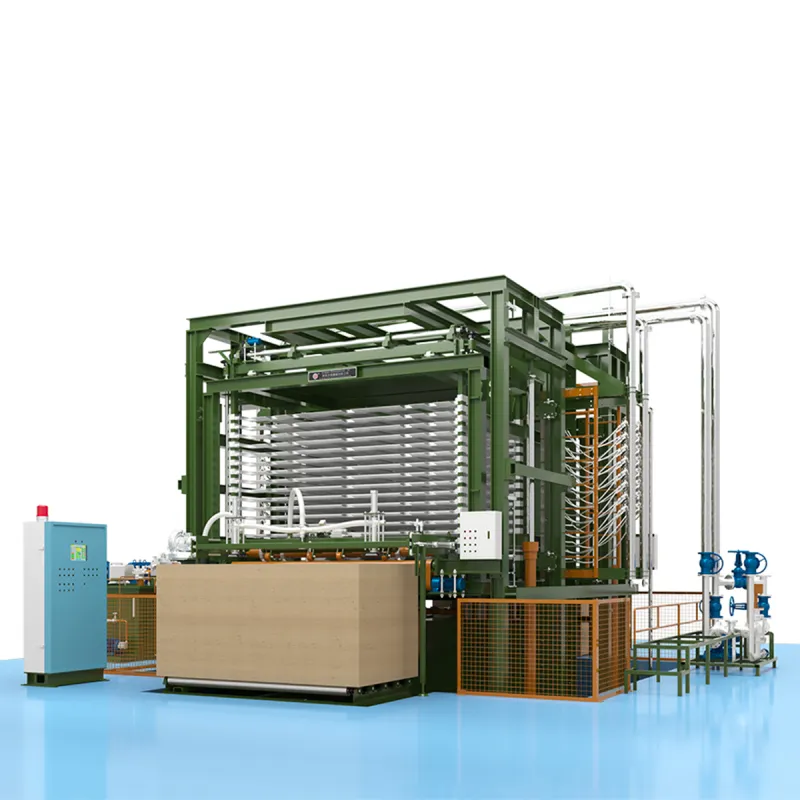

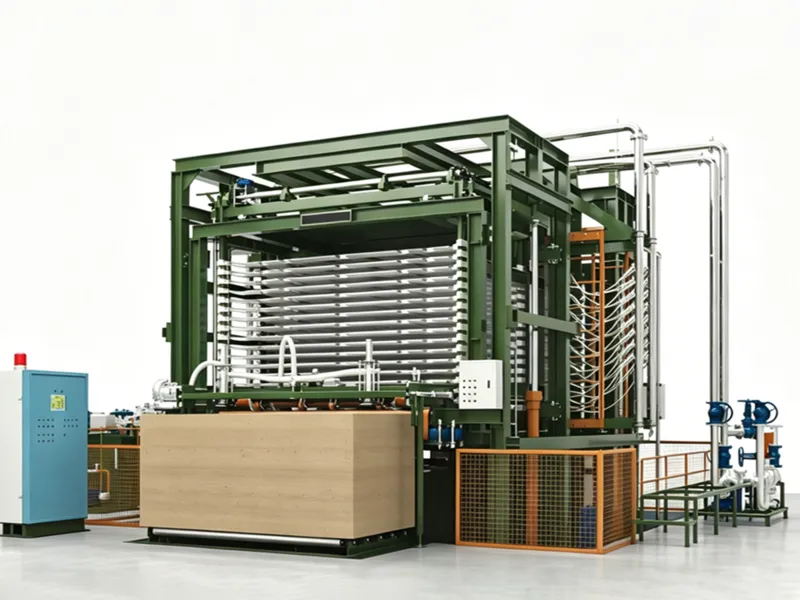

15‑layer press

JDRY-1200T-15LNominal pressure12000kN Platen sizeL:4200*W:1370*H:65mmFeeding modeDouble in and out Product size (mm)1230*2700*13/15/181230*2850*13/15/181230*3000*13/15/181230*3050*13/15/181230*3900*13/15/18Open-seat80 mmStory number15层Main oil cylinder of press$260*1350mm*8 pcsPress lifting cylinder$260*1350mm*2 pcsWorking pressure(mm)1200mmWorking pressure(kg/cm2)21kg/cm2Closing speed(mm/s)3.6m/minOverall size(mm)L:5650*W:1405*H:4750mmControl hydraulic stationFully sealed dust-free d...
Send Inquiry

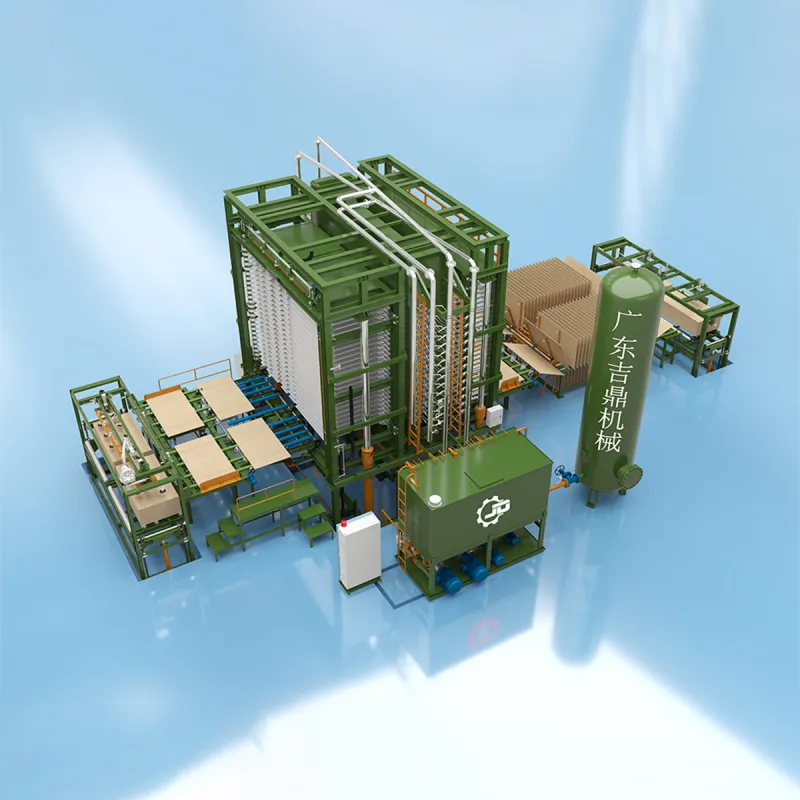

25 story automatic press

JDRY-1000T-25LNominal pressure10000kN Platen sizeL:4200*W:1370*H:60mmFeeding modeDouble in and out Product size (mm)1270*3000 1Pcs;1270*3650 1Pcs1270*3950 1Pcs; 1270*1830 2Pcs970*1830 2PcsOpen-seat80 mmStory number25层Diameter of plunger case(mm)$260*2150mm*8 pcs Working stroke(mm)2000mmWorking pressure(kg/cm2)17kg/cm2Closing speed(m/min)15m/minOverall size(mm)L:5030*W:1370*H:7200mmNitrogen tank sizep1440*6620mm (9m3) 1pcsWeight of nitrogen tank4900kgHydraulic station sizeL:3200*W...
Send Inquiry

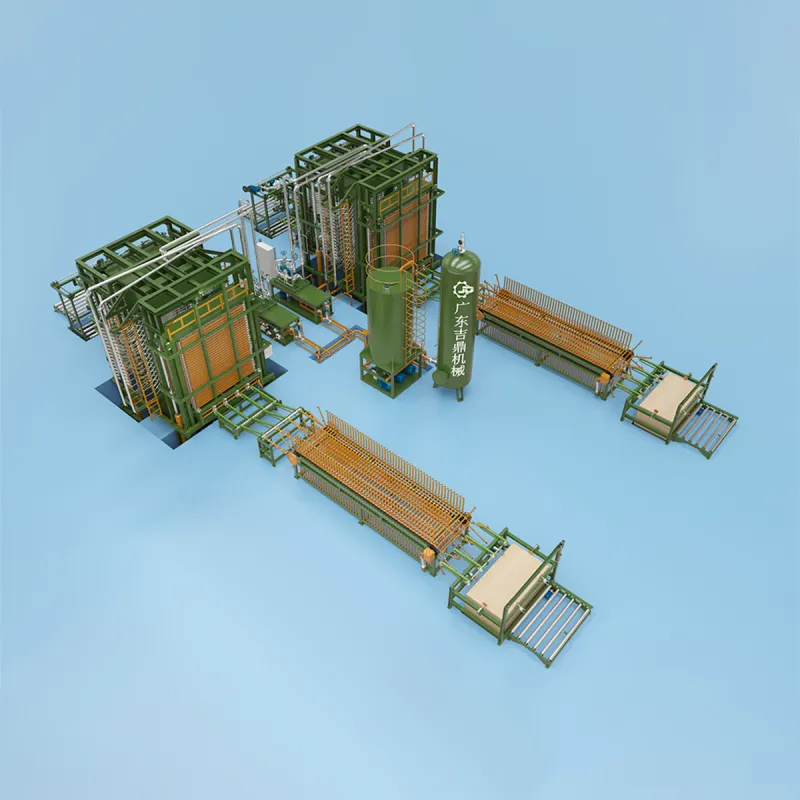

30-layer press (1+2 configuration)

The 30-storey hot press production line with one trailer and two trallers is mainly applicable to the hot press production line withlimited height in the workshop, which can not be installed with 50- storey super-high heat press production line. The advantage of a 30-layerone-pul-two production line is that it uses one oil system and saves nearly half of the energy consumption compared with a 30-layerproduction line with two traditional independent oil system.
Send Inquiry

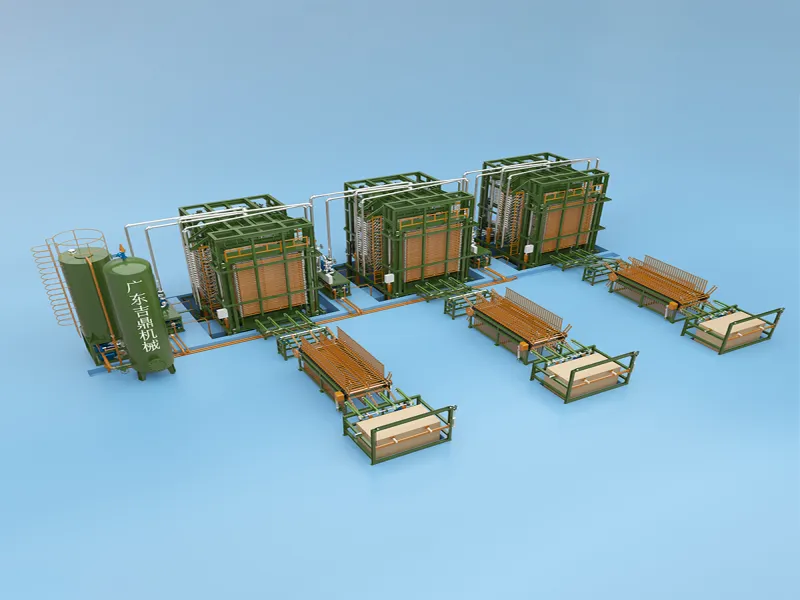

30-layer press (1+3 configuration)

The 30-storey hot press, one trailer and three production lines are mainly applicable to the hot press production lines with limitedheight in the workshop. Itis impossible to install the 50-storey super-high hot press production line. The advantage of the 30-layer one-towthree production line is that the three hot presses share one oil circuitsystem, whichis characterized by high output, high efficiency and lowenergy consumption.
Send Inquiry

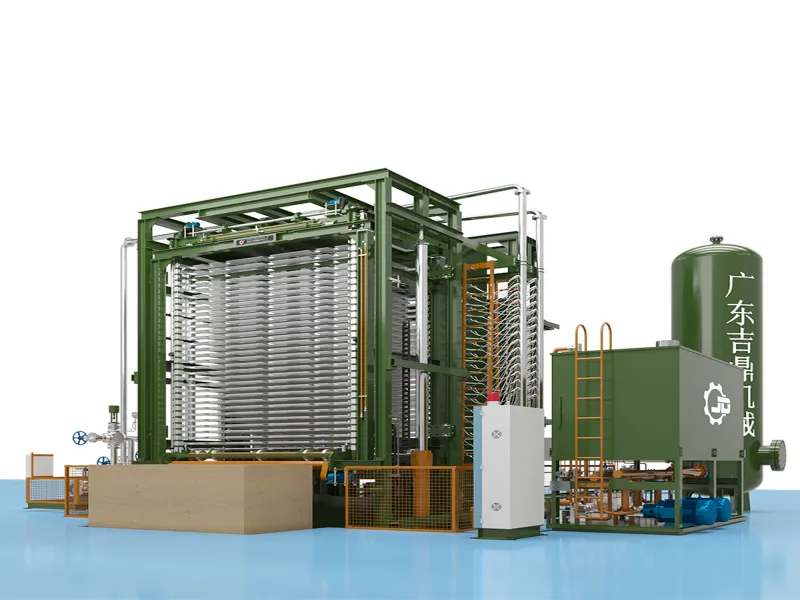

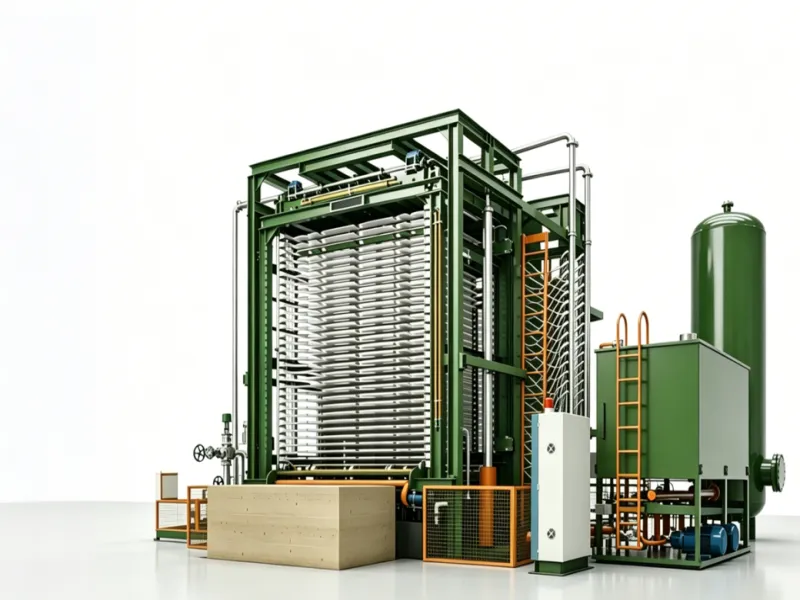

30-layer stand-alone thermal oil press

JDRY-800T-30LNominal pressure8000kN Platen sizeL:2700*W:1370*H:42mmFeeding modeDouble in and out Product size (mm)4*8尺:1220*2440mm 1pcsOpen-seat70 mmStorynumber30层Diameter of plunger case(mm)$320*2250mm*4 pcs (Main) Working stroke(mm)2800mmWorking pressure(kg/cm2)21kg/cm2Closing speed(m/min)15m/minOverall size(mm)L:3590*W:1370*H:6650mmNitrogen tank size$1440*6620mm (9m3) 1pcsWeight of nitrogen tank4900kgHydraulic station sizeL:3200*W:1500*H:2800mmTank volume7m3Total weight of hy...
Send Inquiry

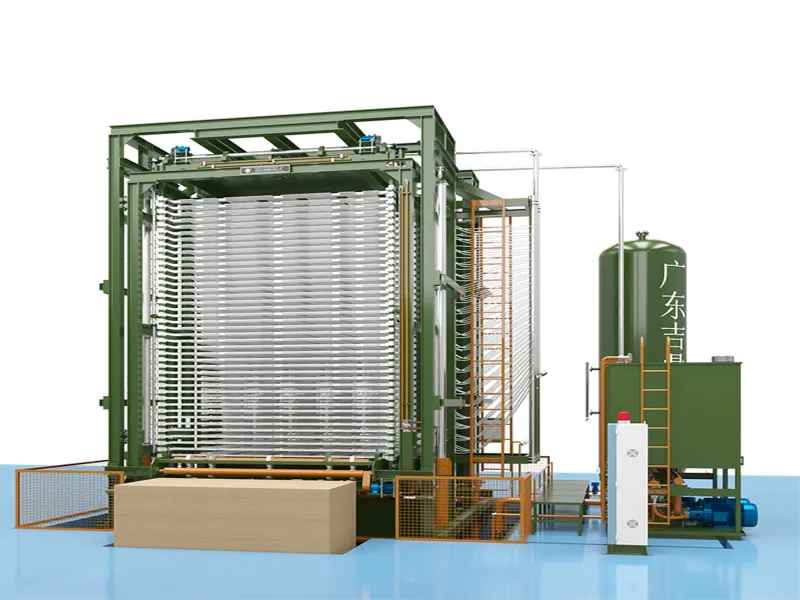

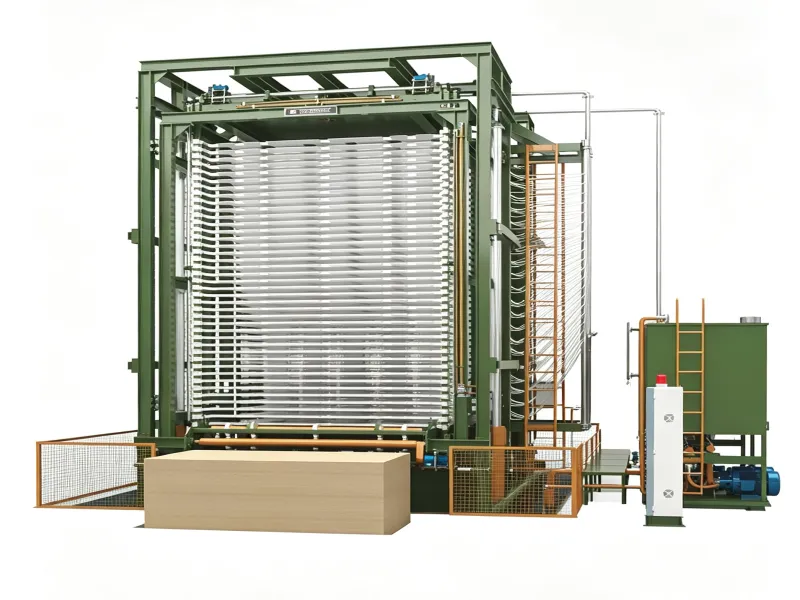

40-layer steam press

JDRY-800T-40LNominal pressure8000kN Platen sizeL:2700*W:1370*H:42mmFeeding modeDouble in and out Product size (mm)4*8尺:1220*2440mm 1pcsOpen-seat70 mmStorynumber65层Diameter of plunger case(mm)Q320*4700mm*4 pcs Working stroke(mm)2800mmWorking pressure(kg/cm2)21kg/cm2Closing speed(m/min)15m/minOverall size(mm)L:3590*W:1370*H:10600mmNitrogen tank sizeQ1440*6620mm (9m3) 1pcsWeight of nitrogen tank4900kgHydraulic station sizeL:3200*W:1500*H:2800mmTank volume7m3Total weight of hydrauli...
Send Inquiry

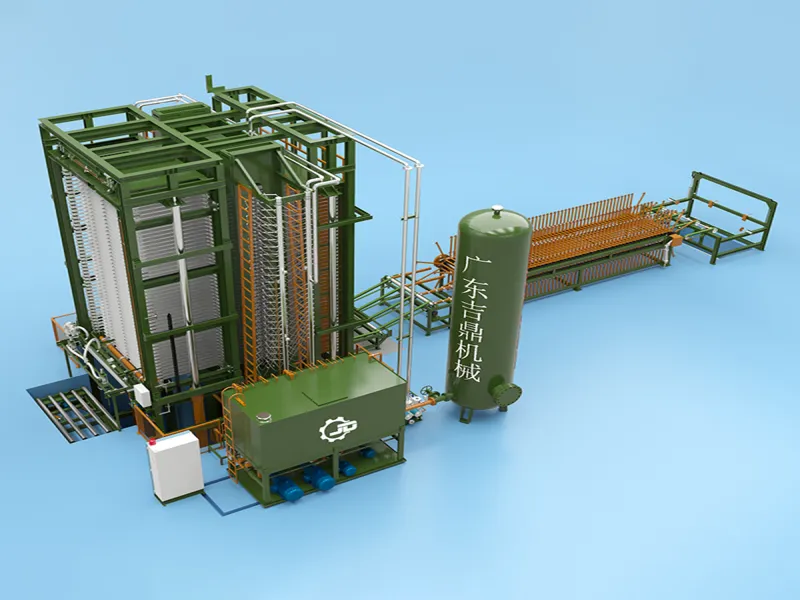

50‑layer press line

Serial numberNameQuantityOptional parts or notAFeeding lifting platform1Optional partsBFeeding system1Optional partsCLoading frame1Standard accessoriesDPress1Standard accessoriesEUnloading frame1Standard accessoriesFConveyor belt1Optional partsGvertical cooling frame1Optional partsH Frame type plate collector1Optional partsICollectinig lifting platform1Optional partsJNitrogentank1Standard accessoriesKHeating system1Standard accessoriesLHydraulic oil station1Standard accessoriesMElectriccont...
Send Inquiry

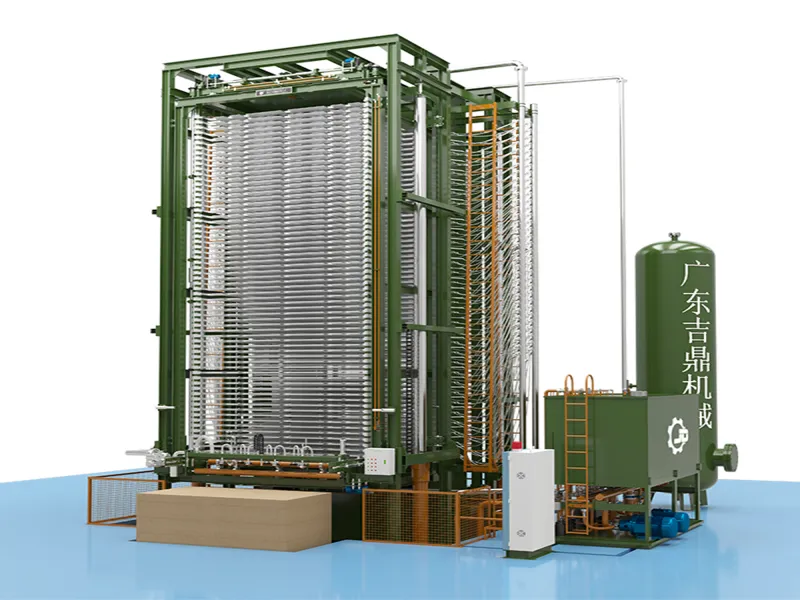

65 story automatic press

Applicable to hot pressing of panel cores for furniture boards, general‑purpose boards, melamine‑based substrates, and flooring base materials.
Send Inquiry

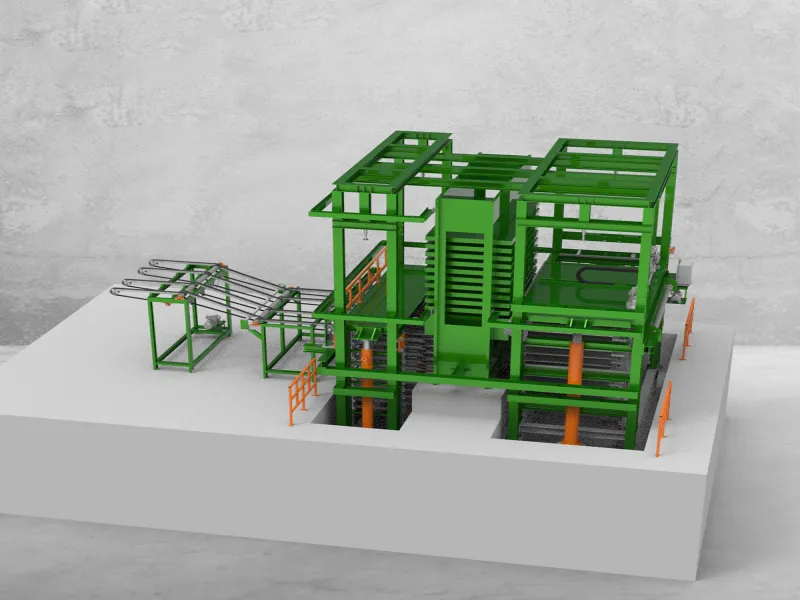

Hot Press

Send Inquiry

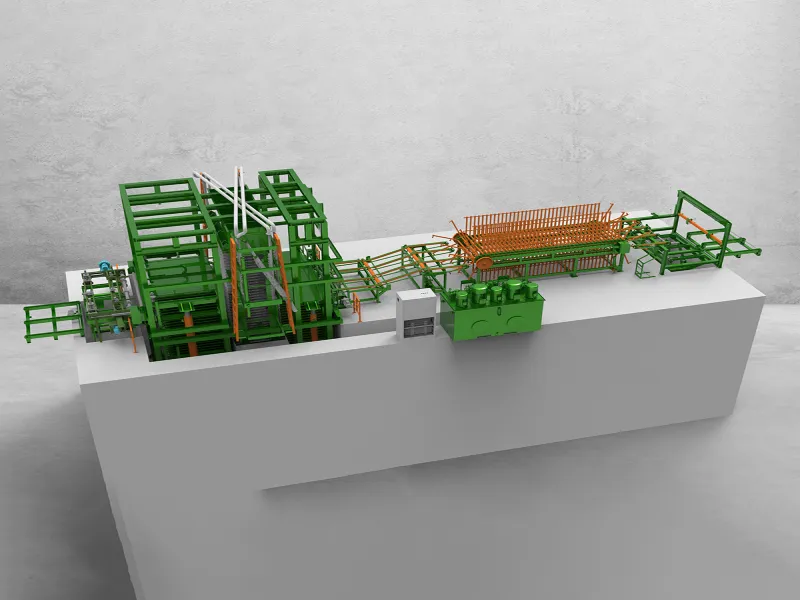

Hot Press

Send Inquiry

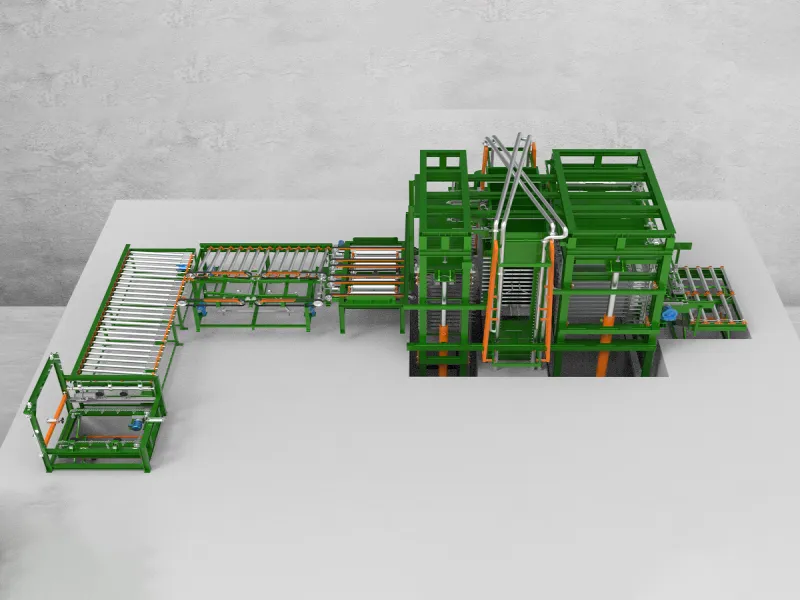

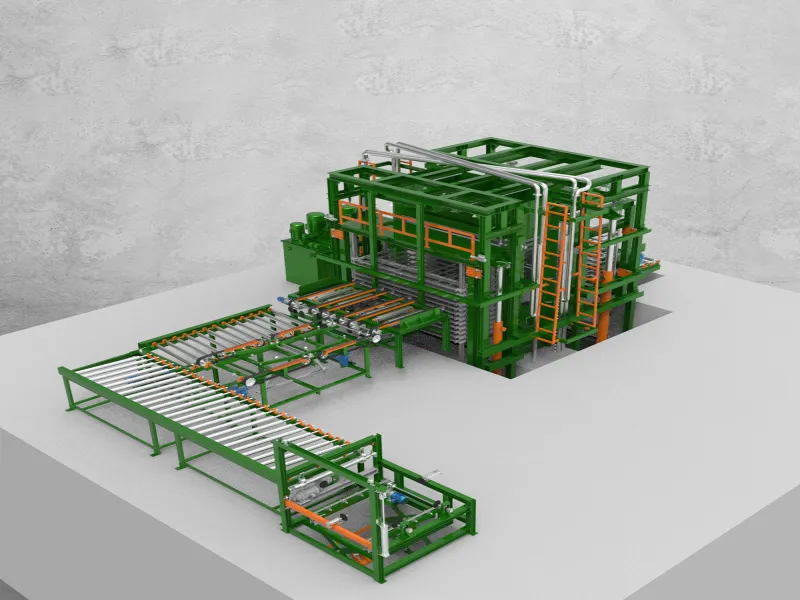

Hot Press Line

Send Inquiry
Hot Press Line

Send Inquiry

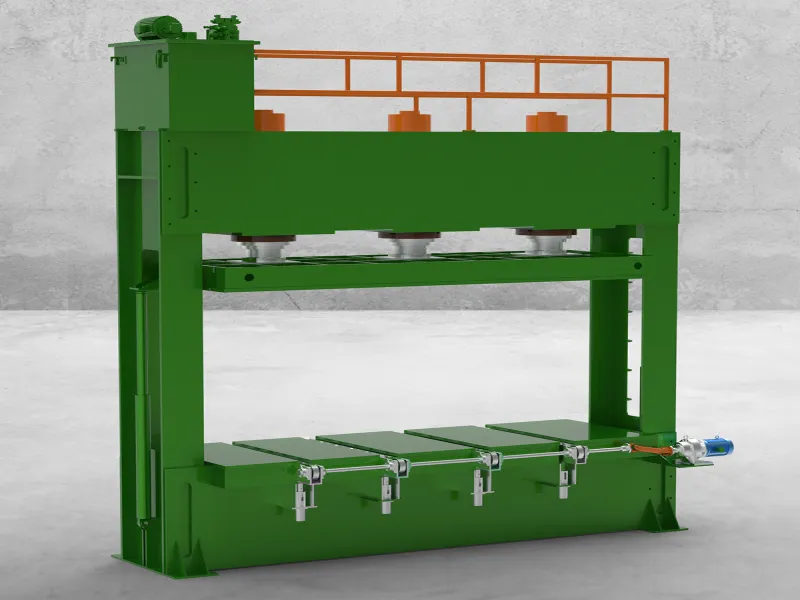

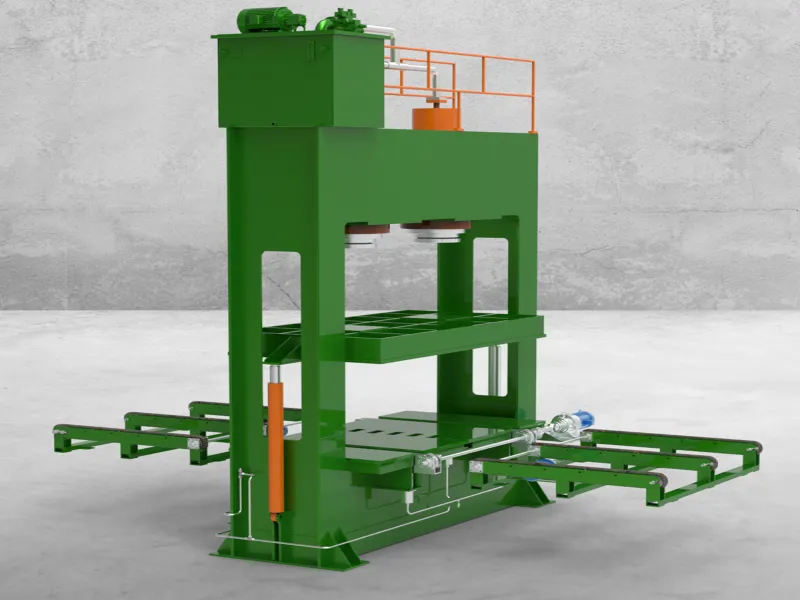

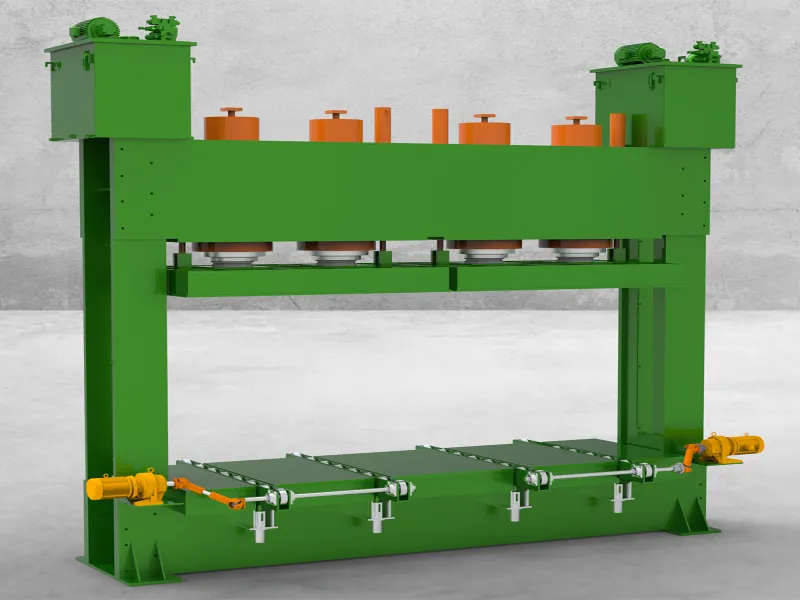

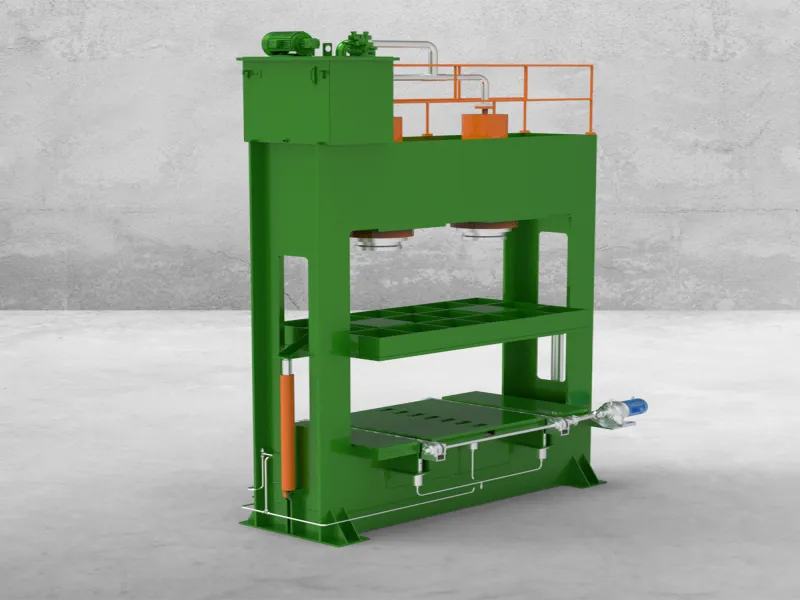

Cold Press

Send Inquiry

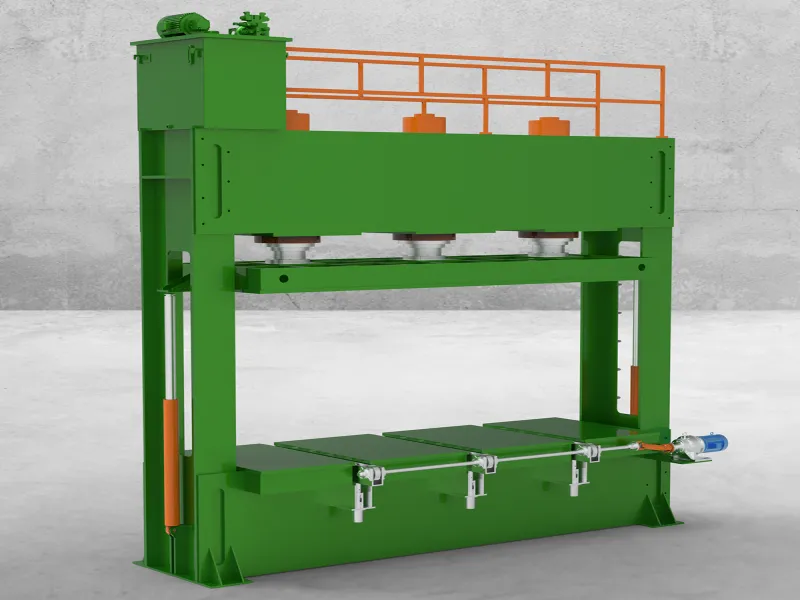

500t Cold Press

Send Inquiry

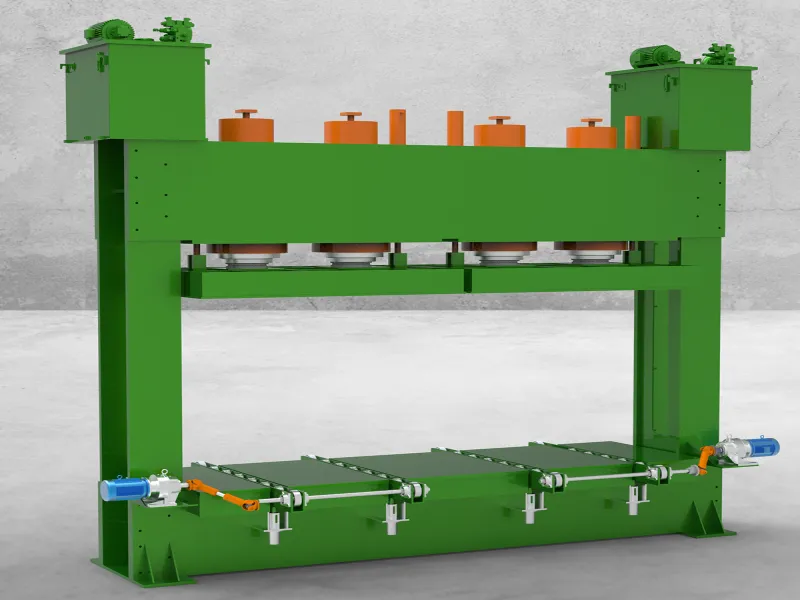

800t Cold Press

Send Inquiry
Cold Press

Send Inquiry
Cold Press

Send Inquiry
Cold Press

Send Inquiry

15‑layer press
25 story automatic press
30-layer press (1+2 configuration)
30-layer press (1+3 configuration)
30-layer stand-alone thermal oil press
40-layer steam press
50‑layer press line
65 story automatic press
Hot Press
Hot Press
Hot Press Line
Hot Press Line
Cold Press
500t Cold Press
800t Cold Press
Cold Press
Cold Press
Cold Press

Altogether32, Every page shows：18article

«
