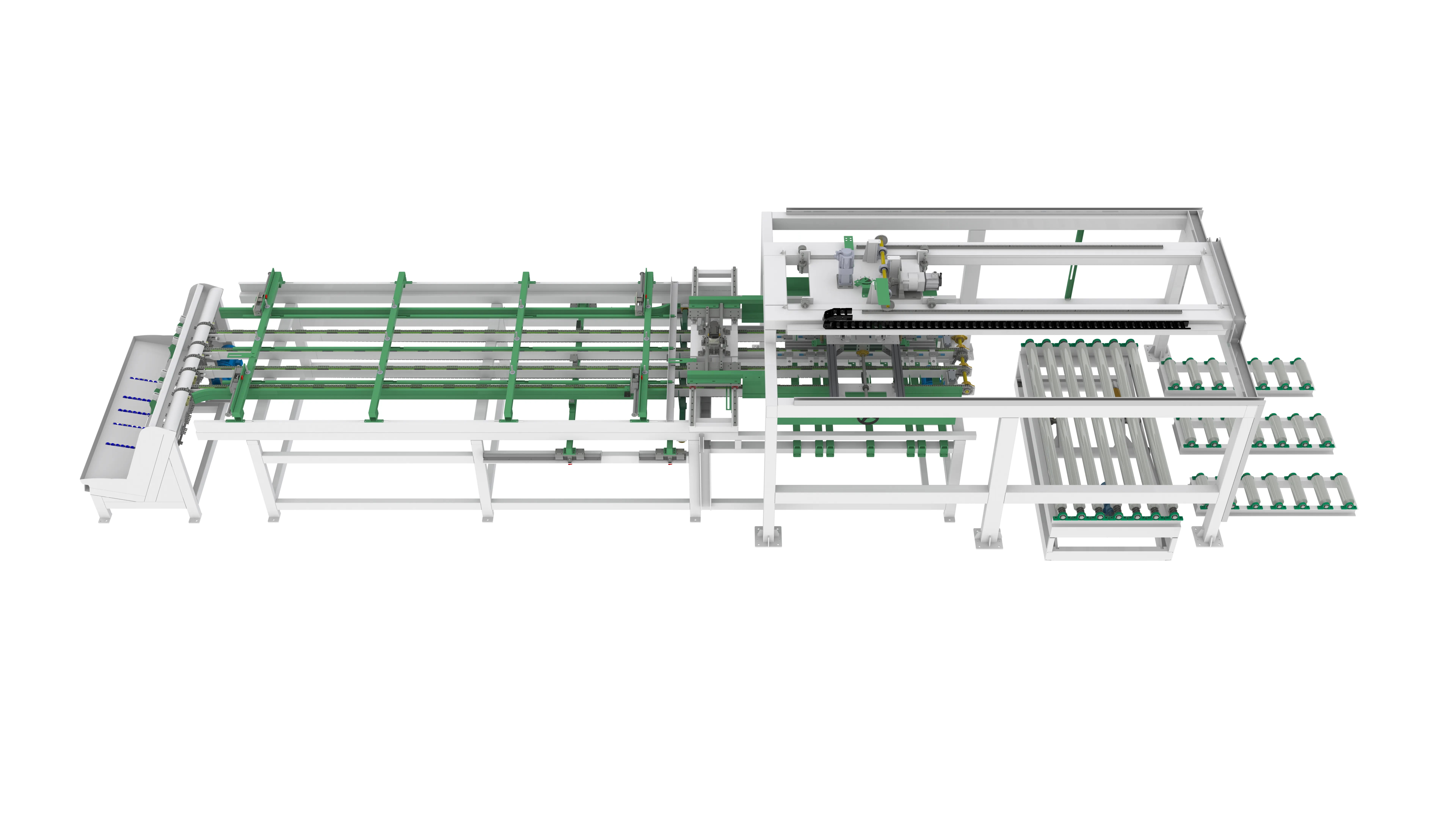

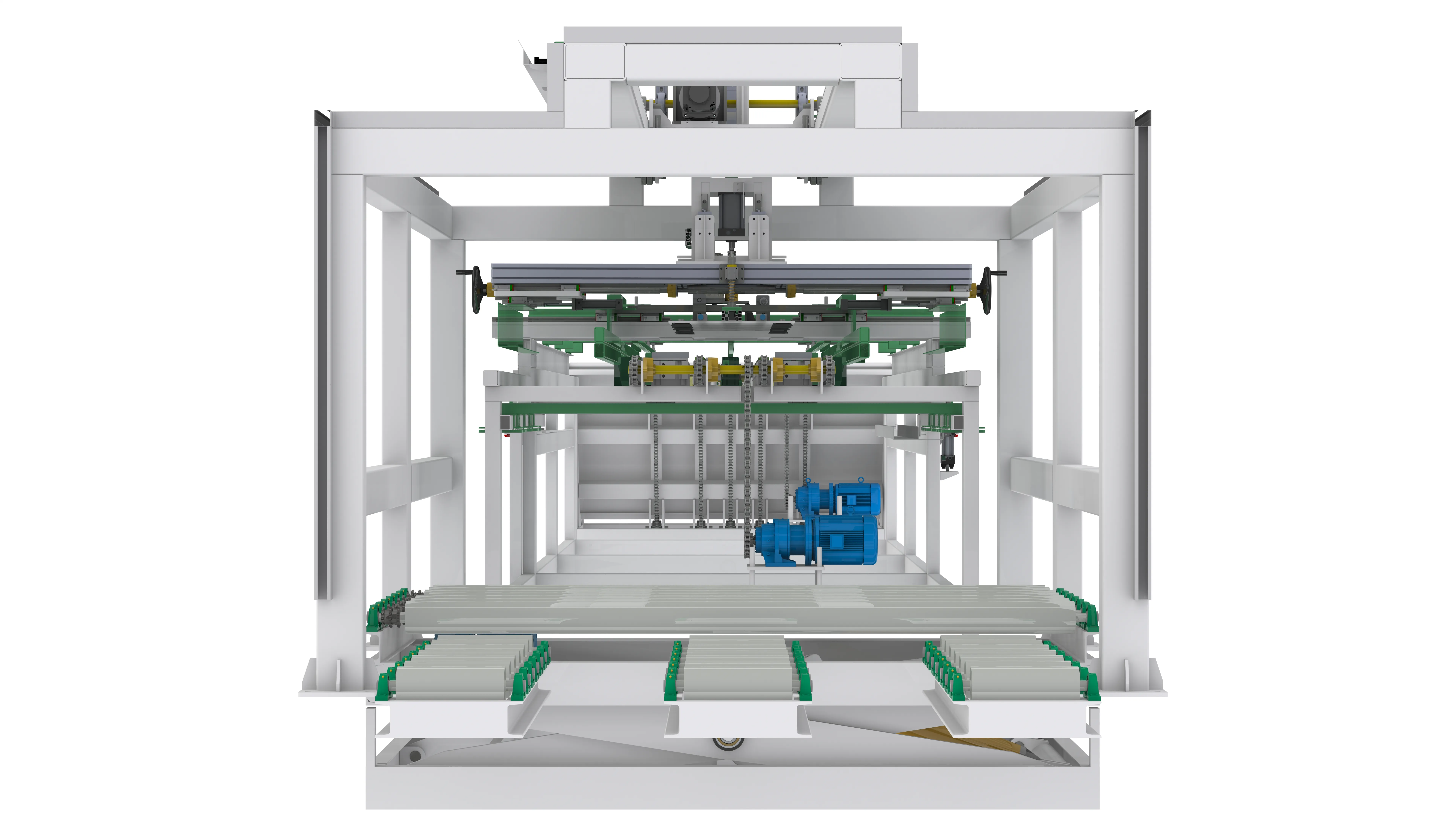

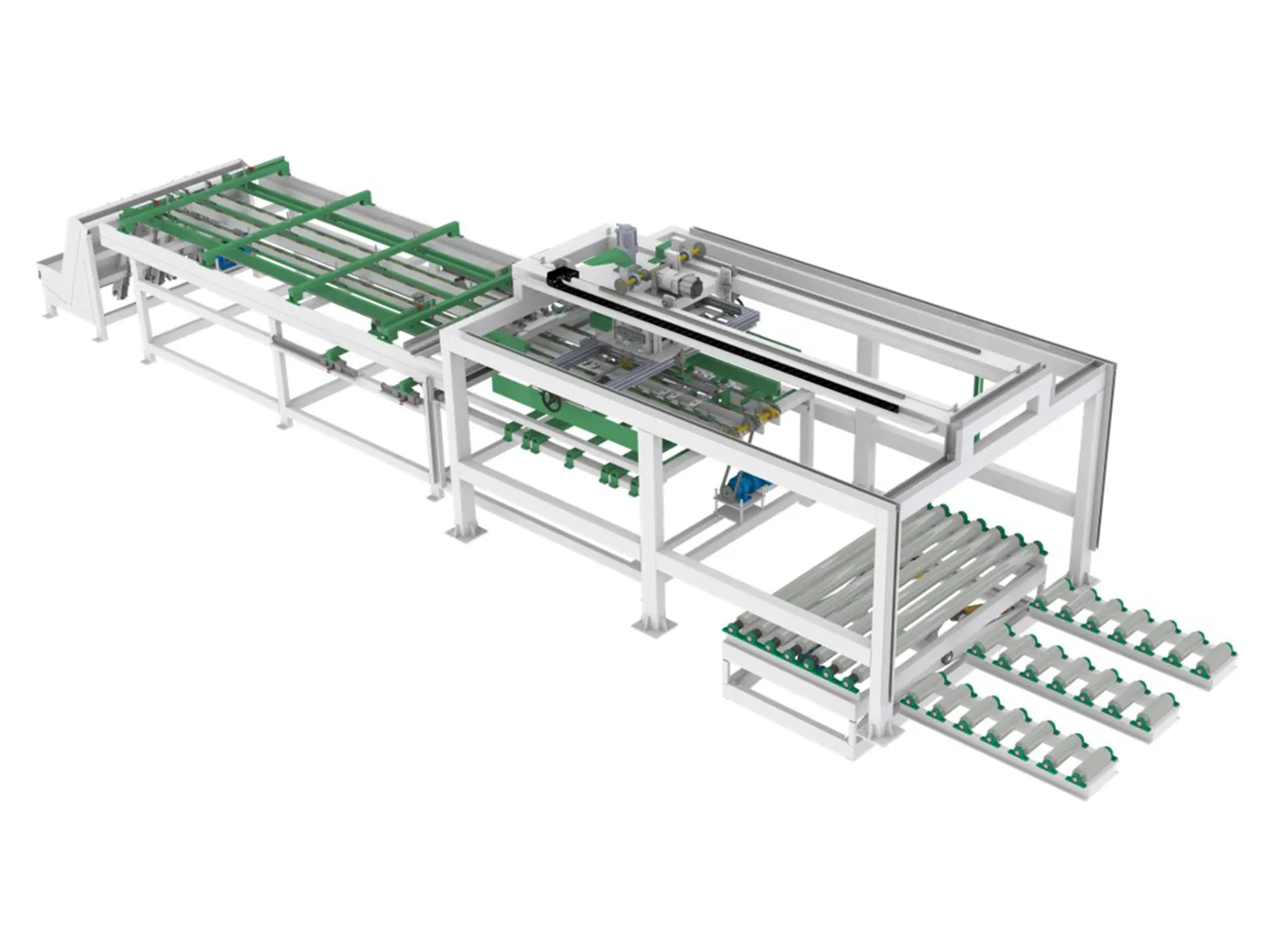

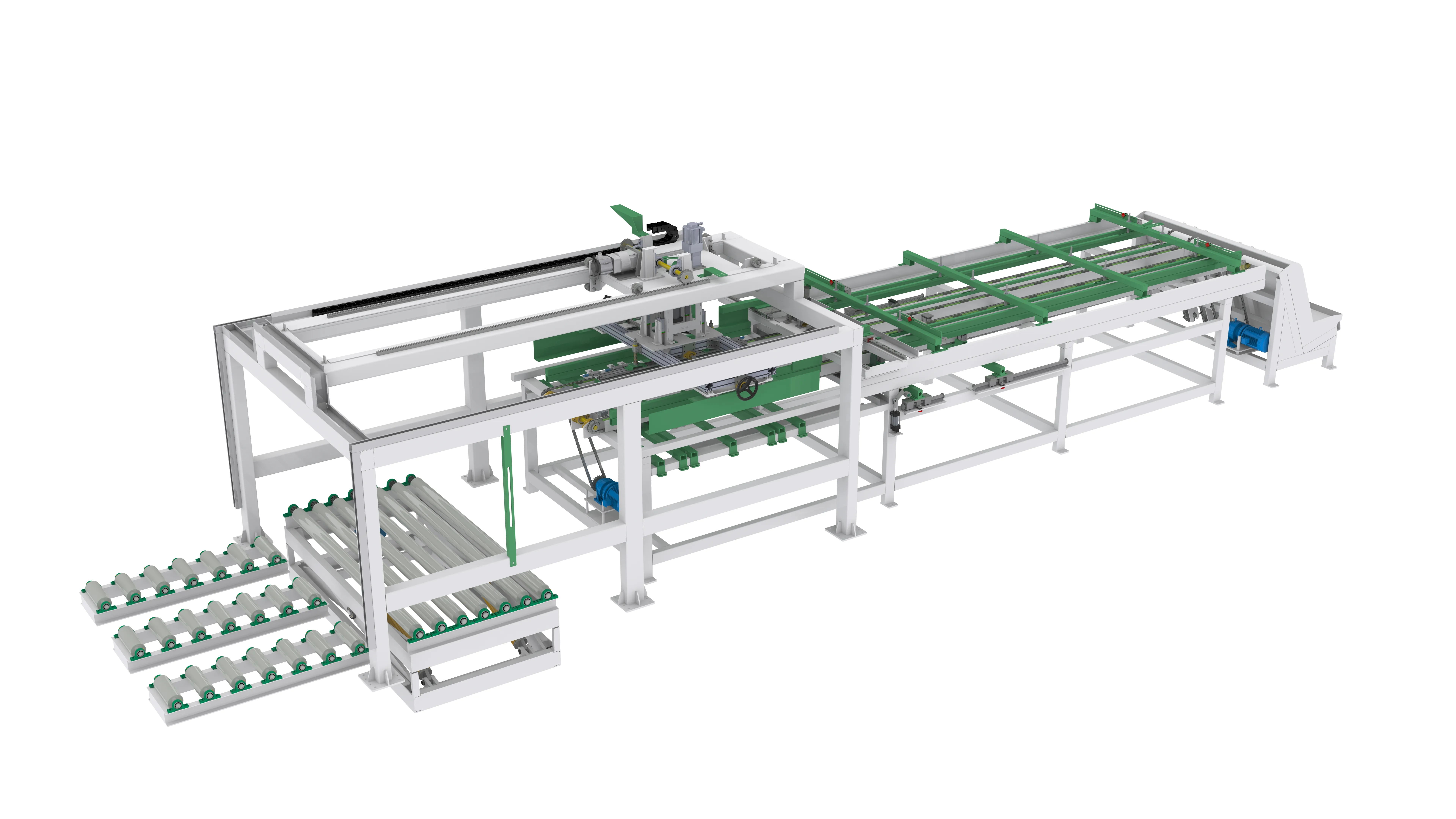

Single-Channel Wood Board Palletizer

1.Can be integrated with the production line to enable automatic loading and unloading.
2.High palletizing efficiency, compatible with continuous wood board production lines Precise
3.Supports multi‑specification wood boards, fast size changeover
4.Can connect upstream equipment such as log cut‑off saw, sorting line and LVL production line

Share：

Contact us Inquiry

Detailed Description

Detailed Description

Product Parameters
Equipment Model MDD-1000 MDD-1500 MDD-2000
main color White + Green White + Green White + Green
total power 7.8 kw 8.2 kw 8.2 kw
size / L-W-H 10.5×2.2×2.5 m 12×2.7×2.5 m 13.5×3.2×2.5 m
Total Weight 4150 kg 4300 kg 4450 kg
processing width 60 mm - 200 mm (Conventional) 60 mm - 200 mm (Conventional) 60 mm - 200 mm (Conventional)
processing thickness 12 mm - 30 mm (Conventional) 12 mm - 30 mm (Conventional) 12 mm - 30 mm (Conventional)
processing length 600 - 1000 mm 800 - 1500 mm 1200 - 1500 mm
Palletized finished product specifications Max. 1 × 1 × 1.2 m Max. 1.5 × 1.5 × 1.2 m Max. 2 × 2 × 1.2 m
Palletizing method One core board and one spacer, adjustable according to requirements One core board and one spacer, adjustable according to requirements One core board and one spacer, adjustable according to requirements
Palletizing speed 10.8 s/layer 11.2 s/layer 11.6 s/layer
Equipment efficiency about 3-3.5 stacks per hour about 3-3.5 stacks per hour about 3-3.5 stacks per hour
Traverse motor power 1.5/2.2 kw servo motor 1.5/2.2 kw servo motor 1.5/2.2 kw servo motor
Rotating electrical machine power 1.5 kw servo motor 1.5 kw servo motor 1.5 kw servo motor
Working Pressure 0.6-0.8 Mpa, dry compressed air 0.6-0.8 Mpa, dry compressed air 0.6-0.8 Mpa, dry compressed air
Working Temperature Indoor, -10℃~40℃ Indoor, -10℃~40℃ Indoor, -10℃~40℃
Power Supply 3-phase 380V, 50Hz, voltage fluctuation ±5% 3-phase 380V, 50Hz, voltage fluctuation ±5% 3-phase 380V, 50Hz, voltage fluctuation ±5%

Related tags：

Previous page： Five-channel Dual-arm Wood Board Palletizer

Next page： Six-Channel Wood Board Palletizer

Equipment Model	MDD-1000	MDD-1500	MDD-2000
main color	White + Green	White + Green	White + Green
total power	7.8 kw	8.2 kw	8.2 kw
size / L-W-H	10.5×2.2×2.5 m	12×2.7×2.5 m	13.5×3.2×2.5 m
Total Weight	4150 kg	4300 kg	4450 kg
processing width	60 mm - 200 mm (Conventional)	60 mm - 200 mm (Conventional)	60 mm - 200 mm (Conventional)
processing thickness	12 mm - 30 mm (Conventional)	12 mm - 30 mm (Conventional)	12 mm - 30 mm (Conventional)
processing length	600 - 1000 mm	800 - 1500 mm	1200 - 1500 mm
Palletized finished product specifications	Max. 1 × 1 × 1.2 m	Max. 1.5 × 1.5 × 1.2 m	Max. 2 × 2 × 1.2 m
Palletizing method	One core board and one spacer, adjustable according to requirements	One core board and one spacer, adjustable according to requirements	One core board and one spacer, adjustable according to requirements
Palletizing speed	10.8 s/layer	11.2 s/layer	11.6 s/layer
Equipment efficiency	about 3-3.5 stacks per hour	about 3-3.5 stacks per hour	about 3-3.5 stacks per hour
Traverse motor power	1.5/2.2 kw servo motor	1.5/2.2 kw servo motor	1.5/2.2 kw servo motor
Rotating electrical machine power	1.5 kw servo motor	1.5 kw servo motor	1.5 kw servo motor
Working Pressure	0.6-0.8 Mpa, dry compressed air	0.6-0.8 Mpa, dry compressed air	0.6-0.8 Mpa, dry compressed air
Working Temperature	Indoor, -10℃~40℃	Indoor, -10℃~40℃	Indoor, -10℃~40℃
Power Supply	3-phase 380V, 50Hz, voltage fluctuation ±5%	3-phase 380V, 50Hz, voltage fluctuation ±5%	3-phase 380V, 50Hz, voltage fluctuation ±5%
