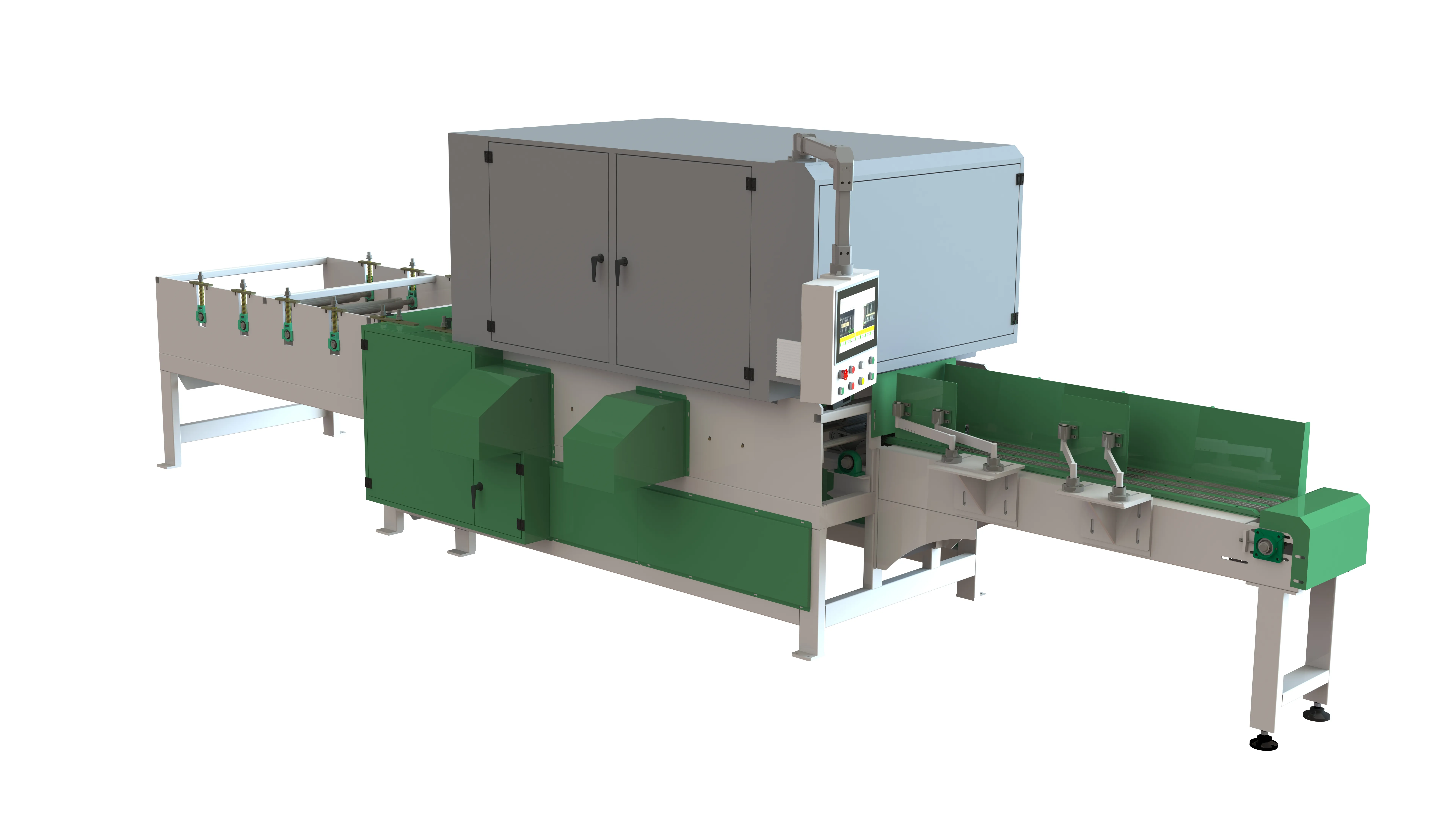

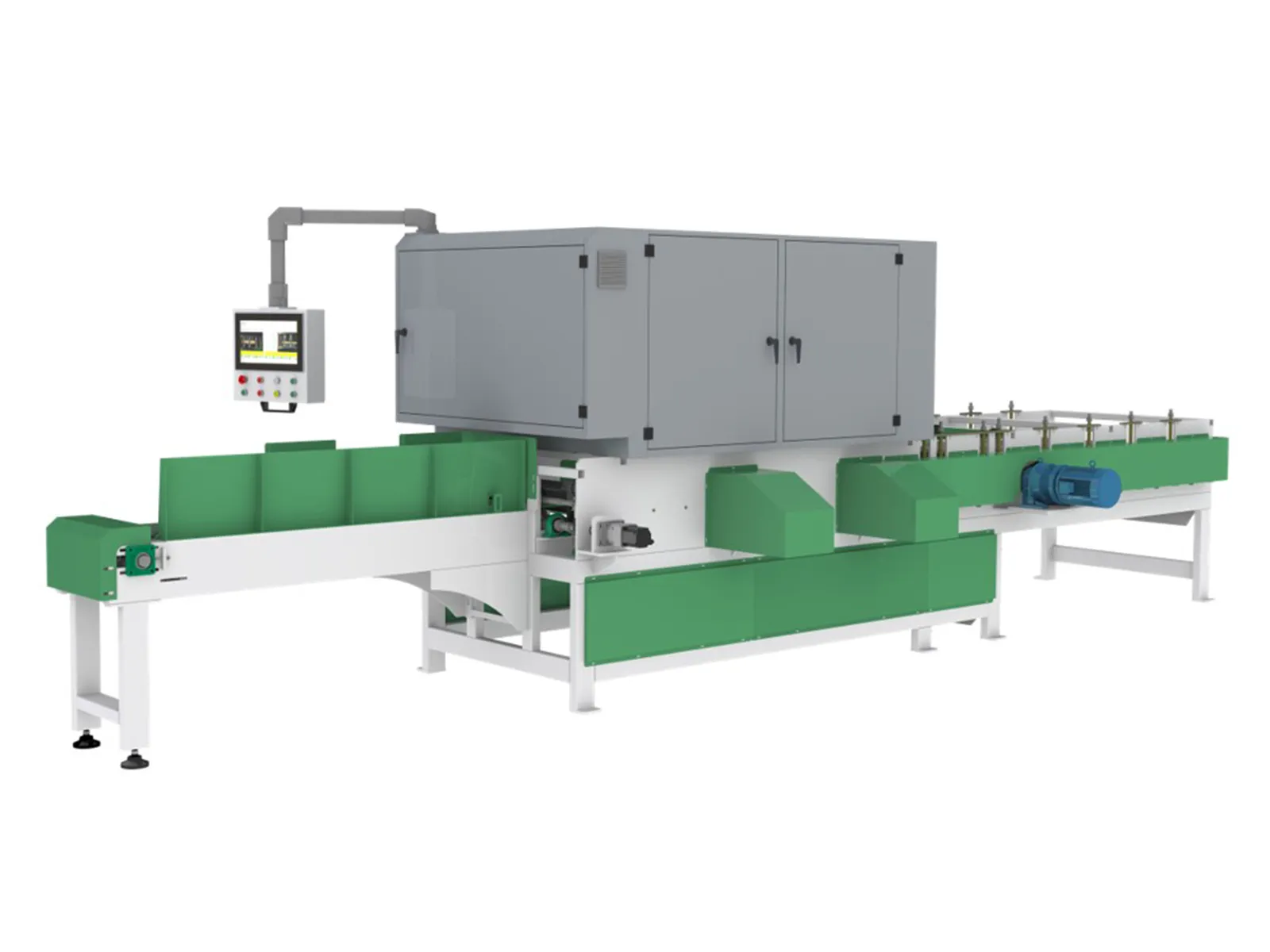

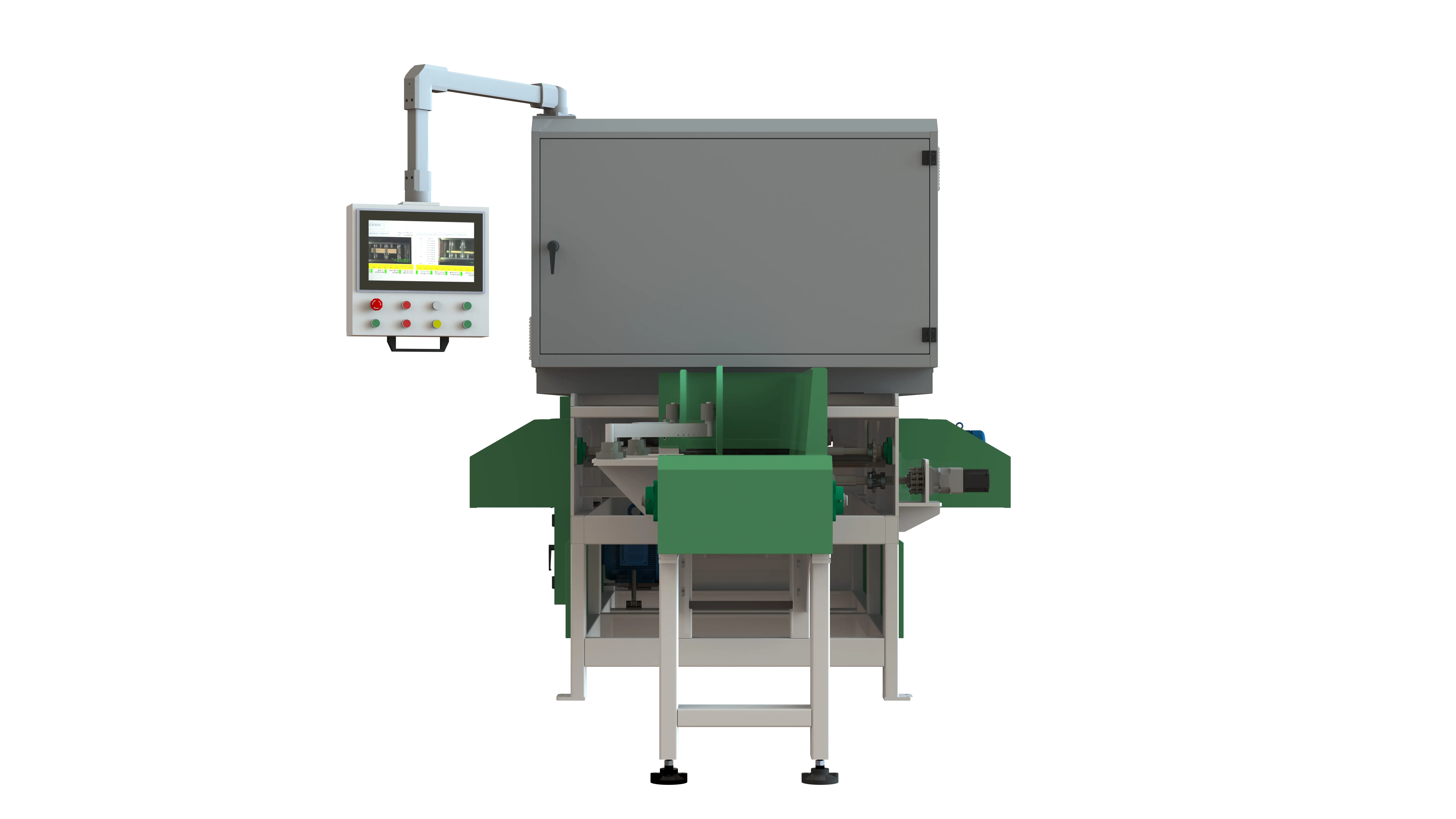

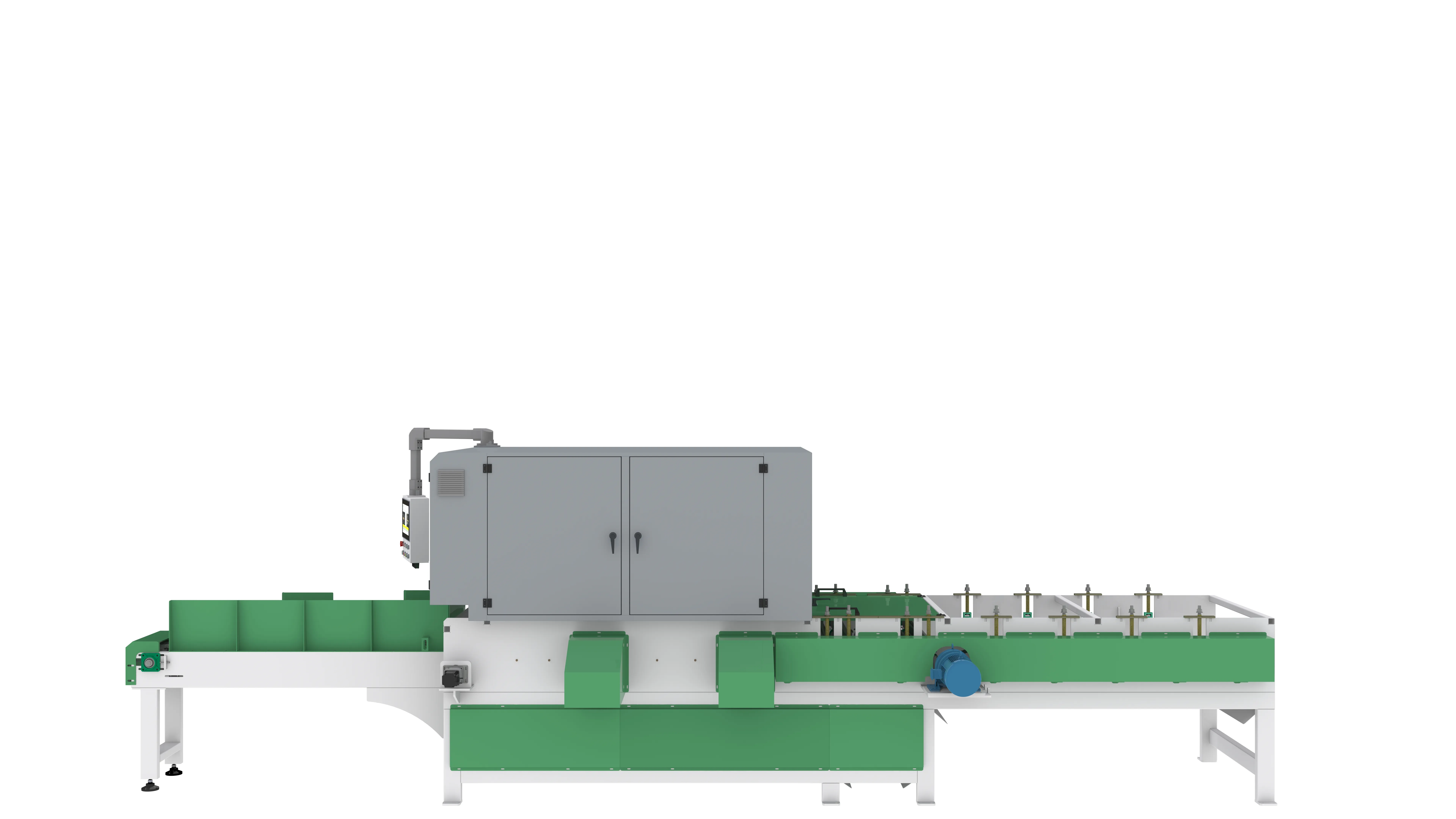

Single-Station Fixed Shaft Intelligent Edge Trimming Machine

1.Auto feeding; pressure wheels and clamps straighten boards.
2.AI vision scans edges, defects, veneers and plans optimal cutting.
3.Servo-driven precision trimming, 0.1–1 mm accuracy.
4.Auto sorting of scraps and boards.
5.Real-time output, yield, status data, remote monitoring.

Share：

Contact us Inquiry

Detailed Description

Detailed Description

Product Parameters
Equipment Model QBJ-700DG QBJ-1200DG QBJ-1600DG
main color White + Gray White + Gray White + Gray
total power 11.4 kw 11.4 kw 11.4 kw
size /W-L-H 1.2×3.3×1.8m 2×5.5×1.8m 2.2×6.7×1.8m
Total Weight 0.9 T 1.3 T 1.8 T
processing width 60-400mm 60-400mm 60-400mm
processing thickness 10-25mm 10-25mm 10-25mm
processing length 450-700 mm 650-1200 mm 850-1600 mm
spindle specifications Φ50 mm Φ50 mm Φ50 mm
spindle speed 3750 rpm 3750 rpm 3750 rpm
main motor power 5.5 Kw 5.5 Kw 5.5 Kw
feeding motor power 0.75 Kw × 3 0.75 Kw × 3 0.75 Kw × 3
feeding speed Max 50 m/min Max 50 m/min Max 50 m/min
efficiency 2100 pcs/h 1280 pcs/h 960 pcs/h
blade size 150 × 1.9 × 50 × 20T / 160 × 1.9 × 50 × 20T 150 × 1.9 × 50 × 20T / 160 × 1.9 × 50 × 20T 150 × 1.9 × 50 × 20T / 160 × 1.9 × 50 × 20T
Working Pressure 0.6-0.8 Mpa, dry compressed air 0.6-0.8 Mpa, dry compressed air 0.6-0.8 Mpa, dry compressed air
Working Temperature Indoor, -10℃~40℃ Indoor, -10℃~40℃ Indoor, -10℃~40℃
Power Supply 3-phase 380V, 50Hz, voltage fluctuation ±5% 3-phase 380V, 50Hz, voltage fluctuation ±5% 3-phase 380V, 50Hz, voltage fluctuation ±5%

Related tags：

Previous page： Single-Station Moving Axis Intelligent Edge Trimming Machine

Next page： Dual-Station Fixed-Axis Intelligent Edge Trimming Machine

Equipment Model	QBJ-700DG	QBJ-1200DG	QBJ-1600DG
main color	White + Gray	White + Gray	White + Gray
total power	11.4 kw	11.4 kw	11.4 kw
size /W-L-H	1.2×3.3×1.8m	2×5.5×1.8m	2.2×6.7×1.8m
Total Weight	0.9 T	1.3 T	1.8 T
processing width	60-400mm	60-400mm	60-400mm
processing thickness	10-25mm	10-25mm	10-25mm
processing length	450-700 mm	650-1200 mm	850-1600 mm
spindle specifications	Φ50 mm	Φ50 mm	Φ50 mm
spindle speed	3750 rpm	3750 rpm	3750 rpm
main motor power	5.5 Kw	5.5 Kw	5.5 Kw
feeding motor power	0.75 Kw × 3	0.75 Kw × 3	0.75 Kw × 3
feeding speed	Max 50 m/min	Max 50 m/min	Max 50 m/min
efficiency	2100 pcs/h	1280 pcs/h	960 pcs/h
blade size	150 × 1.9 × 50 × 20T / 160 × 1.9 × 50 × 20T	150 × 1.9 × 50 × 20T / 160 × 1.9 × 50 × 20T	150 × 1.9 × 50 × 20T / 160 × 1.9 × 50 × 20T
Working Pressure	0.6-0.8 Mpa, dry compressed air	0.6-0.8 Mpa, dry compressed air	0.6-0.8 Mpa, dry compressed air
Working Temperature	Indoor, -10℃~40℃	Indoor, -10℃~40℃	Indoor, -10℃~40℃
Power Supply	3-phase 380V, 50Hz, voltage fluctuation ±5%	3-phase 380V, 50Hz, voltage fluctuation ±5%	3-phase 380V, 50Hz, voltage fluctuation ±5%
