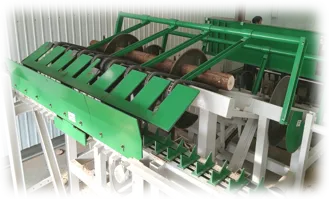

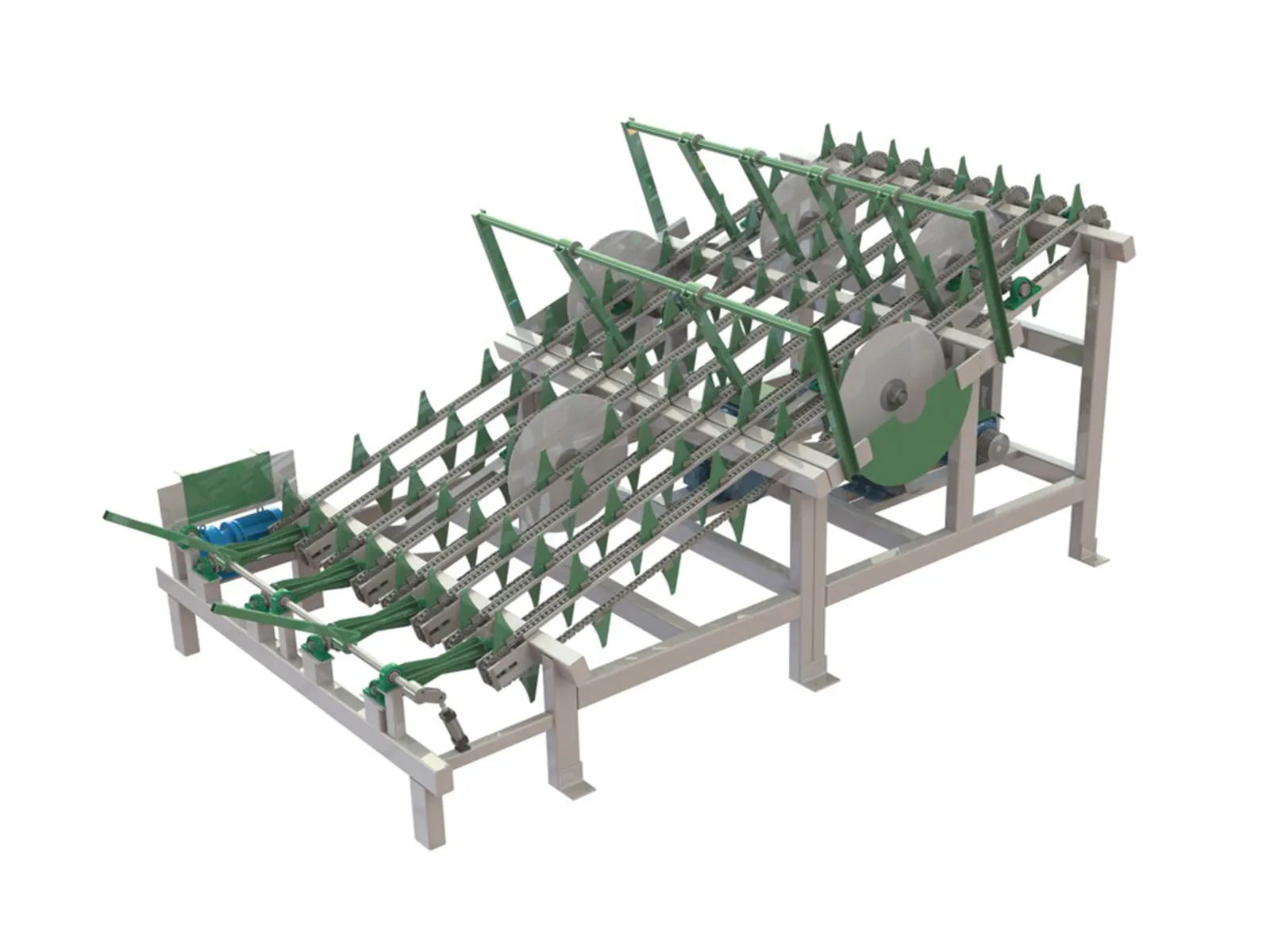

Fixed Log Cutting Saw

1.Precise cutting to preset length, uniform dimensions.
2.Rigid fixed frame, stable under heavy loads.
3.Auto feeding, continuous cutting, high output.
4.Accurate positioning, smooth ends, minimal burrs.
5.Simple structure, easy operation, one operator.

Share：

Contact us Inquiry

Detailed Description

Detailed Description

Product Parameters
Equipment Model DMJ-4GD-2000P DMJ-4GD-2500P DMJ-5GD-3000P
Total machine weight 4100 kg 4330 kg 4650 kg
Overall dimensions 2500 × 4100 × 2100 mm 3150 × 4100 × 2100 mm 3650 × 4100 × 2100 mm
Maximum Sawing Diameter 320 mm 320 mm 320 mm
Maximum sawing length 2200 mm 2600 mm 3200 mm
Applicable wood materials Various types of round logs such as eucalyptus wood, pine wood, miscellaneous wood and poplar wood Various types of round logs such as eucalyptus wood, pine wood, miscellaneous wood and poplar wood Various types of round logs such as eucalyptus wood, pine wood, miscellaneous wood and poplar wood
Conveyor chain assembly 8 groups 8 groups 10 groups
Saw blade specifications Ø900 × 6 mm Ø900 × 6 mm Ø900 × 6 mm
Cutting Length 500 mm 600 mm 600 mm
Feed speed 2 – 10 m/min variable frequency adjustment 2 – 10 m/min variable frequency adjustment 2 – 10 m/min variable frequency adjustment
Sawing Motor 11 kW - 4-pole × 5 pcs 11 kW - 4-pole × 5 pcs 11 kW - 4-pole × 6 pcs
Feeding Motor 2.2 kW - 4-pole 2.2 kW - 4-pole 2.2 kW - 4-pole
Edge motor 2.2 kW - 4-pole 2.2 kW - 4-pole 2.2 kW - 4-pole
Supporting Expansion It can be matched with a conveying feeding rack and discharging rack to form an assembly line. It can be matched with a conveying feeding rack and discharging rack to form an assembly line. It can be matched with a conveying feeding rack and discharging rack to form an assembly line.

Related tags：

Previous page： None

Next page： Adjustable Log Cross-cut Saw

Equipment Model	DMJ-4GD-2000P	DMJ-4GD-2500P	DMJ-5GD-3000P
Total machine weight	4100 kg	4330 kg	4650 kg
Overall dimensions	2500 × 4100 × 2100 mm	3150 × 4100 × 2100 mm	3650 × 4100 × 2100 mm
Maximum Sawing Diameter	320 mm	320 mm	320 mm
Maximum sawing length	2200 mm	2600 mm	3200 mm
Applicable wood materials	Various types of round logs such as eucalyptus wood, pine wood, miscellaneous wood and poplar wood	Various types of round logs such as eucalyptus wood, pine wood, miscellaneous wood and poplar wood	Various types of round logs such as eucalyptus wood, pine wood, miscellaneous wood and poplar wood
Conveyor chain assembly	8 groups	8 groups	10 groups
Saw blade specifications	Ø900 × 6 mm	Ø900 × 6 mm	Ø900 × 6 mm
Cutting Length	500 mm	600 mm	600 mm
Feed speed	2 – 10 m/min variable frequency adjustment	2 – 10 m/min variable frequency adjustment	2 – 10 m/min variable frequency adjustment
Sawing Motor	11 kW - 4-pole × 5 pcs	11 kW - 4-pole × 5 pcs	11 kW - 4-pole × 6 pcs
Feeding Motor	2.2 kW - 4-pole	2.2 kW - 4-pole	2.2 kW - 4-pole
Edge motor	2.2 kW - 4-pole	2.2 kW - 4-pole	2.2 kW - 4-pole
Supporting Expansion	It can be matched with a conveying feeding rack and discharging rack to form an assembly line.	It can be matched with a conveying feeding rack and discharging rack to form an assembly line.	It can be matched with a conveying feeding rack and discharging rack to form an assembly line.
