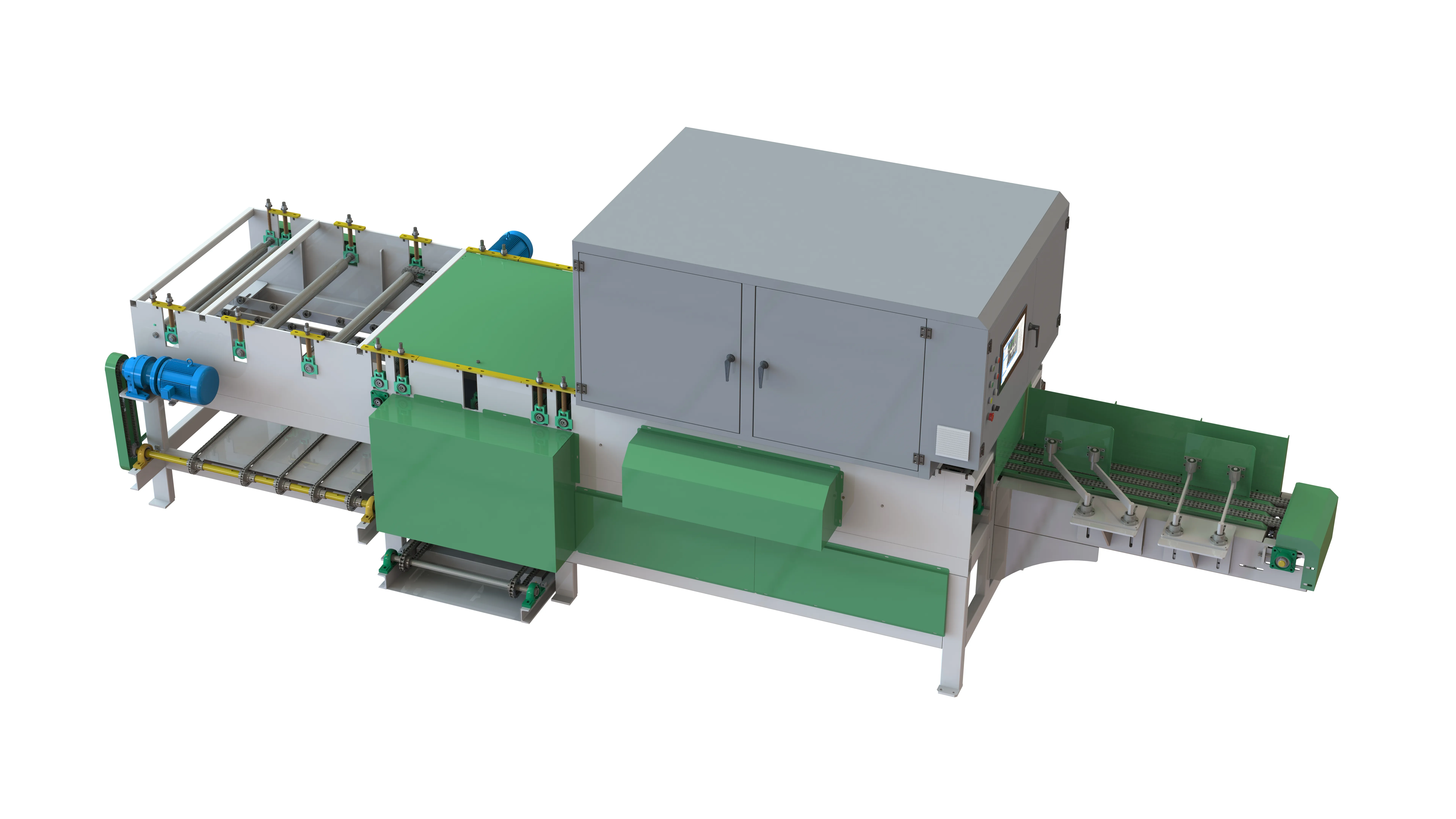

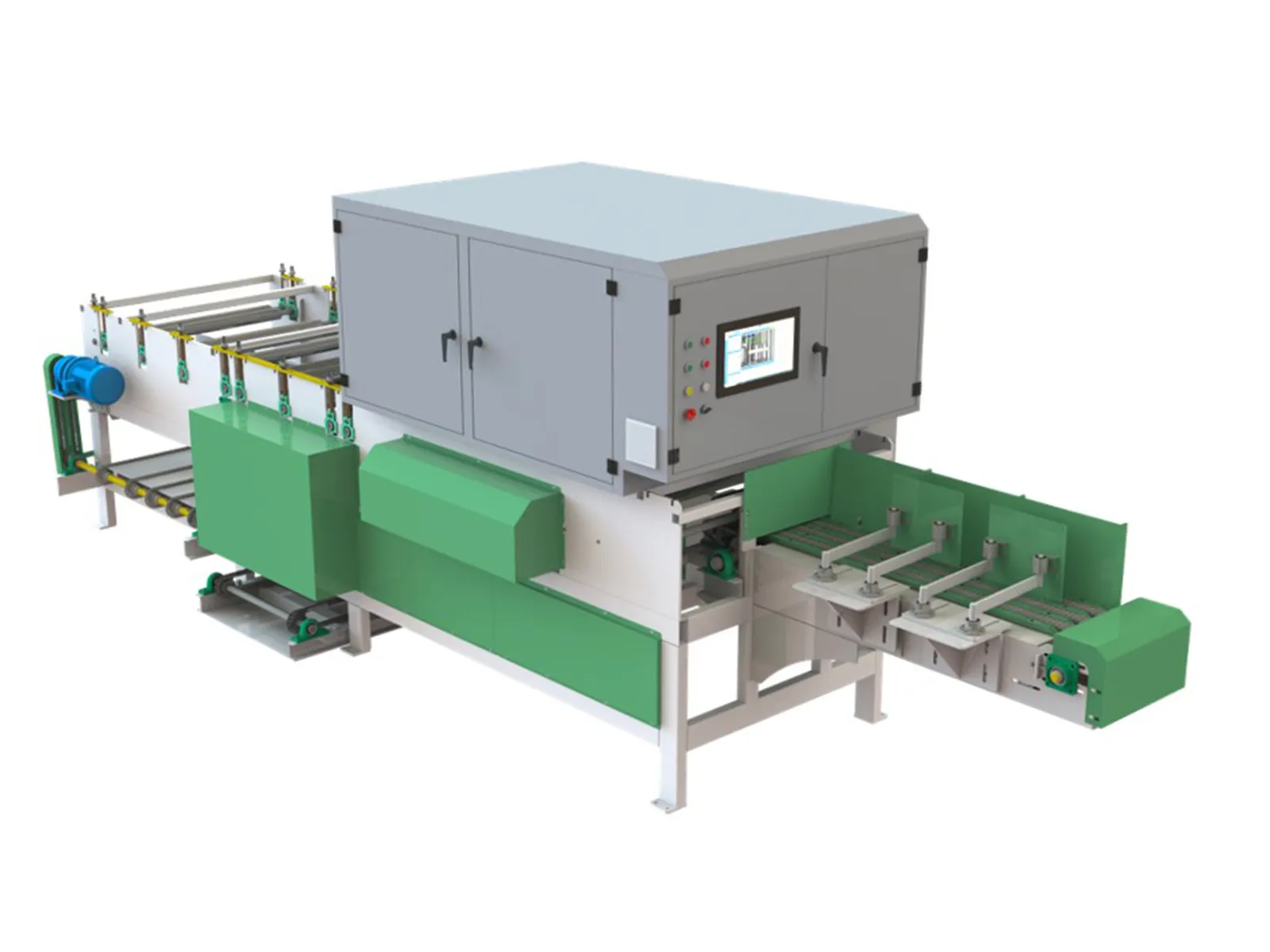

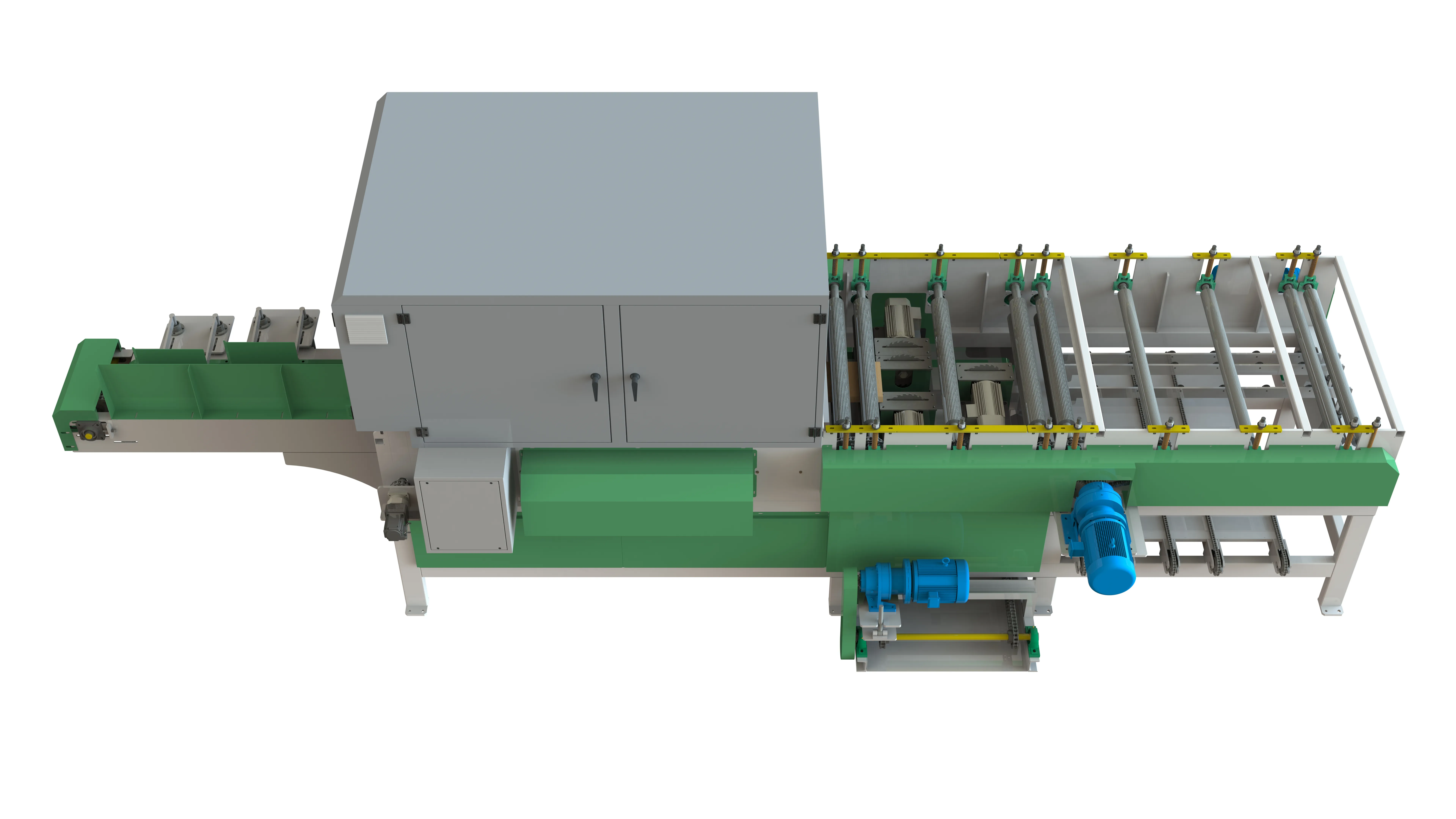

Single-Station Moving Axis Intelligent Edge Trimming Machine

    Single-Station Moving Axis Intelligent Edge Trimming Machine

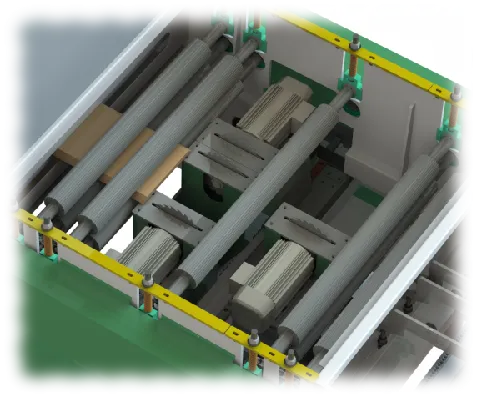

      • 1.Moving saw dynamic feed along the board's maximum sawable surface, maximizing usable area.
        • 2.High yield: optimal trimming path, minimum waste, maximum board area.
          • 3.AI recognition: auto-detects edges and defects, plans cutting in real time.
            • 4.High precision: servo positioning, stable trimming dimensions.
              • 5.Fully automatic: auto feeding, cutting, sorting, two operator
    Inquiry

Detailed Description

Product Parameters

Equipment ModelQBJ-700DZQBJ-1200DZQBJ-1600DZ
main colorWhite + GrayWhite + GrayWhite + Gray
total power17.6 kw17.6 kw17.6 kw
size /W-L-H1.6×4.8×1.8 m1.6×6.3×1.8 m1.6×7.5×1.8 m
Total Weight2.13 T2.35 T2.64 T
processing width60-400 mm60-400 mm60-400 mm
processing thickness10-25 mm10-25 mm10-25 mm
processing length450-700 mm650-1200 mm850-1600 mm
spindle specificationsΦ50 mmΦ50 mmΦ50 mm
spindle speed3750 rpm3750 rpm3750 rpm
main motor power5.5 Kw5.5 Kw5.5 Kw
feeding motor power0.75 Kw × 3 pcs0.75 Kw × 3 pcs0.75 Kw × 3 pcs
feeding speedMax 50 m/minMax 50 m/minMax 50 m/min
efficiency2000 pcs/h1180 pcs/h860 pcs/h
blade size150 × 1.9 × 50 × 20T / 160 × 1.9 × 50 × 20T150 × 1.9 × 50 × 20T / 160 × 1.9 × 50 × 20T150 × 1.9 × 50 × 20T / 160 × 1.9 × 50 × 20T
Working Pressure0.6-0.8Mpa, dry compressed air0.6-0.8Mpa, dry compressed air0.6-0.8Mpa, dry compressed air
Working TemperatureIndoor, -10℃~40℃Indoor, -10℃~40℃Indoor, -10℃~40℃
Power Supply3-phase 380V, 50Hz, voltage fluctuation ±5%3-phase 380V, 50Hz, voltage fluctuation ±5%3-phase 380V, 50Hz, voltage fluctuation ±5%
