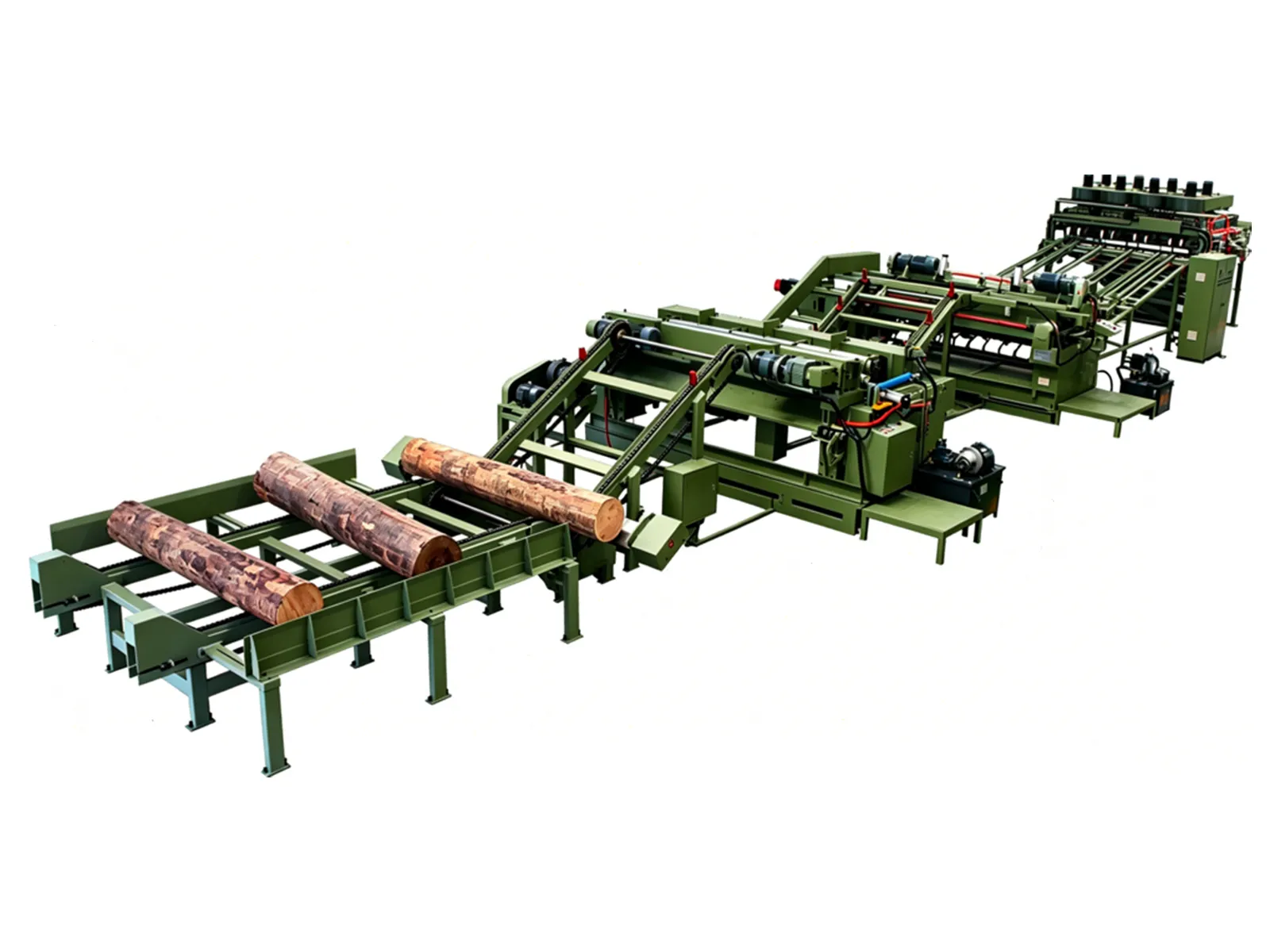

Automatic Single Veneer Peeling Production Line

1.Product: continuous veneer line for plywood & blockboard.
2.Core: spindleless lathe, twin friction rollers drive the log, no centering.
3.Value: peels to Φ30–50 mm core, higher yield.
4.Automation: feeding, debarking, shearing, stacking in one line, uniform thickness.
5.Labor: 1–2 operators.

Share：

Contact us Inquiry

Detailed Description

Detailed Description

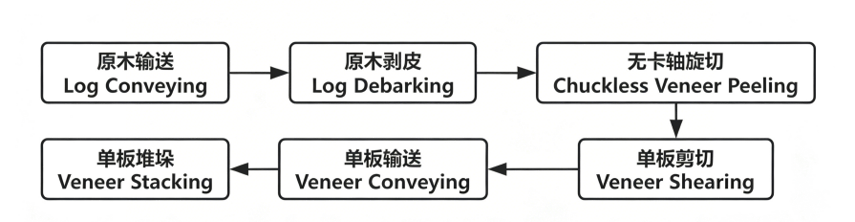

Process Flow：

Device Parameters：

Equipment Model
Loading Platform (1300G) Loading Platform (2600G) Three-stage feeding rack (1300G) Three-stage feeding rack (2600G)
length 6 m 6 m / /
Power 4 kw×1 unt.+2.2 kw×1 unt. 7.5 kw×1 unt.+5.5 kw×1 unt. 1.5 kw × 3 unt. 2.2 kw × 3 unt.
Frequency converter 5 kw + 3 kw 11 kw + 7.5 kw 2.2 kw × 3 unt. 3 kw × 3 unt.
Function Equipped with log centering device; the front section moves the whole pile forward, and the rear section shifts single layers horizontally Equipped with log centering device; the front section moves the whole pile forward, and the rear section shifts single layers horizontally Four-core cables are used for motor connecting wires Four-core cables are used for motor connecting wires

Equipment Model Palletizer (1300G) Palletizer (2600G) Equipment Model Log Straight Rip Saw
Palletizing Dimensions 1270× (600-900)× (1.0-3.6) mm 2600×1300× (1.0-3.6) mm Sawing Length 1300 mm
Classification method Classify boards into Grade A and Grade B; stack two piles of Grade A boards Classify boards into Grade A and Grade B; stack two piles of Grade A boards Length after sawing 1270 mm
Palletizing Speed ≤90m/min ≤100m/min Sawing Diameter 800 mm
Stacking Height 1000mm 1200mm Number of saw blades 2 pcs
Working Method Vacuum Fan Vacuum Fan Saw blade motor 15 kw × 4 unt.
Fan power 3kw×2 unt., 5.5kw×2 unt. 3kw×5 feed motor 1.5 kw × 1 unt.
Conveying Motor Power 1.5 kw × 2 unt. 1.5 kw × 1 unt. Feed Inverter 2.2 kw × 1 unt.
Power of lifting motor 2.2 kw × 2 unt. 4 kw ×1 unt.

Power of Primary Conveyor Motor 1.5 kw × 2 unt. 1.5 kw × 2 unt.

Power of Secondary Plate Conveying Motor 1.5 kw × 1 unt. 1.5 kw × 1 unt.

Related tags：

Previous page： Cardless Rotary Lathe

Next page： None

Equipment Model	Loading Platform (1300G)	Loading Platform (2600G)	Three-stage feeding rack (1300G)	Three-stage feeding rack (2600G)
length	6 m	6 m	/	/
Power	4 kw×1 unt.+2.2 kw×1 unt.	7.5 kw×1 unt.+5.5 kw×1 unt.	1.5 kw × 3 unt.	2.2 kw × 3 unt.
Frequency converter	5 kw + 3 kw	11 kw + 7.5 kw	2.2 kw × 3 unt.	3 kw × 3 unt.
Function	Equipped with log centering device; the front section moves the whole pile forward, and the rear section shifts single layers horizontally	Equipped with log centering device; the front section moves the whole pile forward, and the rear section shifts single layers horizontally	Four-core cables are used for motor connecting wires	Four-core cables are used for motor connecting wires

Equipment Model	Palletizer (1300G)	Palletizer (2600G)	Equipment Model	Log Straight Rip Saw
Palletizing Dimensions	1270× (600-900)× (1.0-3.6) mm	2600×1300× (1.0-3.6) mm	Sawing Length	1300 mm
Classification method	Classify boards into Grade A and Grade B; stack two piles of Grade A boards	Classify boards into Grade A and Grade B; stack two piles of Grade A boards	Length after sawing	1270 mm
Palletizing Speed	≤90m/min	≤100m/min	Sawing Diameter	800 mm
Stacking Height	1000mm	1200mm	Number of saw blades	2 pcs
Working Method	Vacuum Fan	Vacuum Fan	Saw blade motor	15 kw × 4 unt.
Fan power	3kw×2 unt., 5.5kw×2 unt.	3kw×5	feed motor	1.5 kw × 1 unt.
Conveying Motor Power	1.5 kw × 2 unt.	1.5 kw × 1 unt.	Feed Inverter	2.2 kw × 1 unt.
Power of lifting motor	2.2 kw × 2 unt.	4 kw ×1 unt.
Power of Primary Conveyor Motor	1.5 kw × 2 unt.	1.5 kw × 2 unt.
Power of Secondary Plate Conveying Motor	1.5 kw × 1 unt.	1.5 kw × 1 unt.
