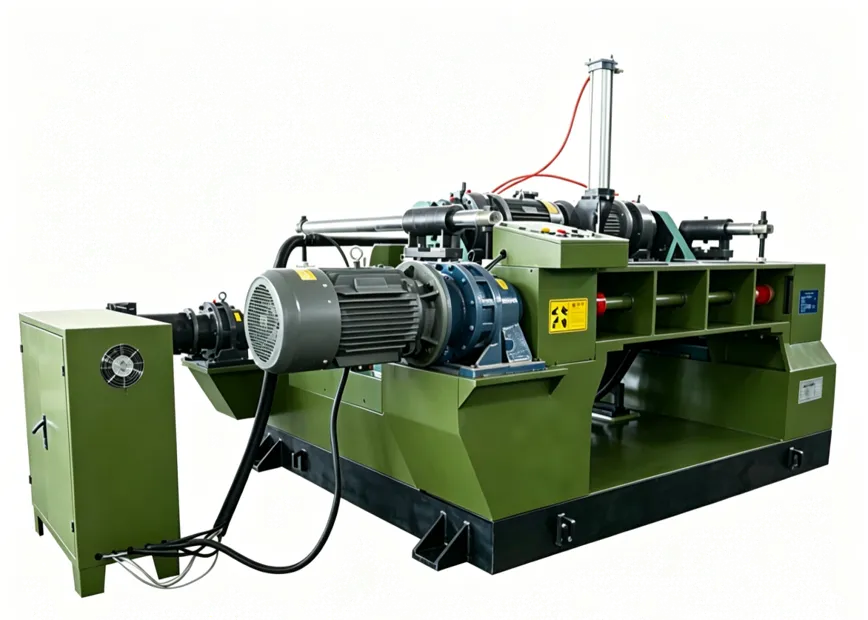

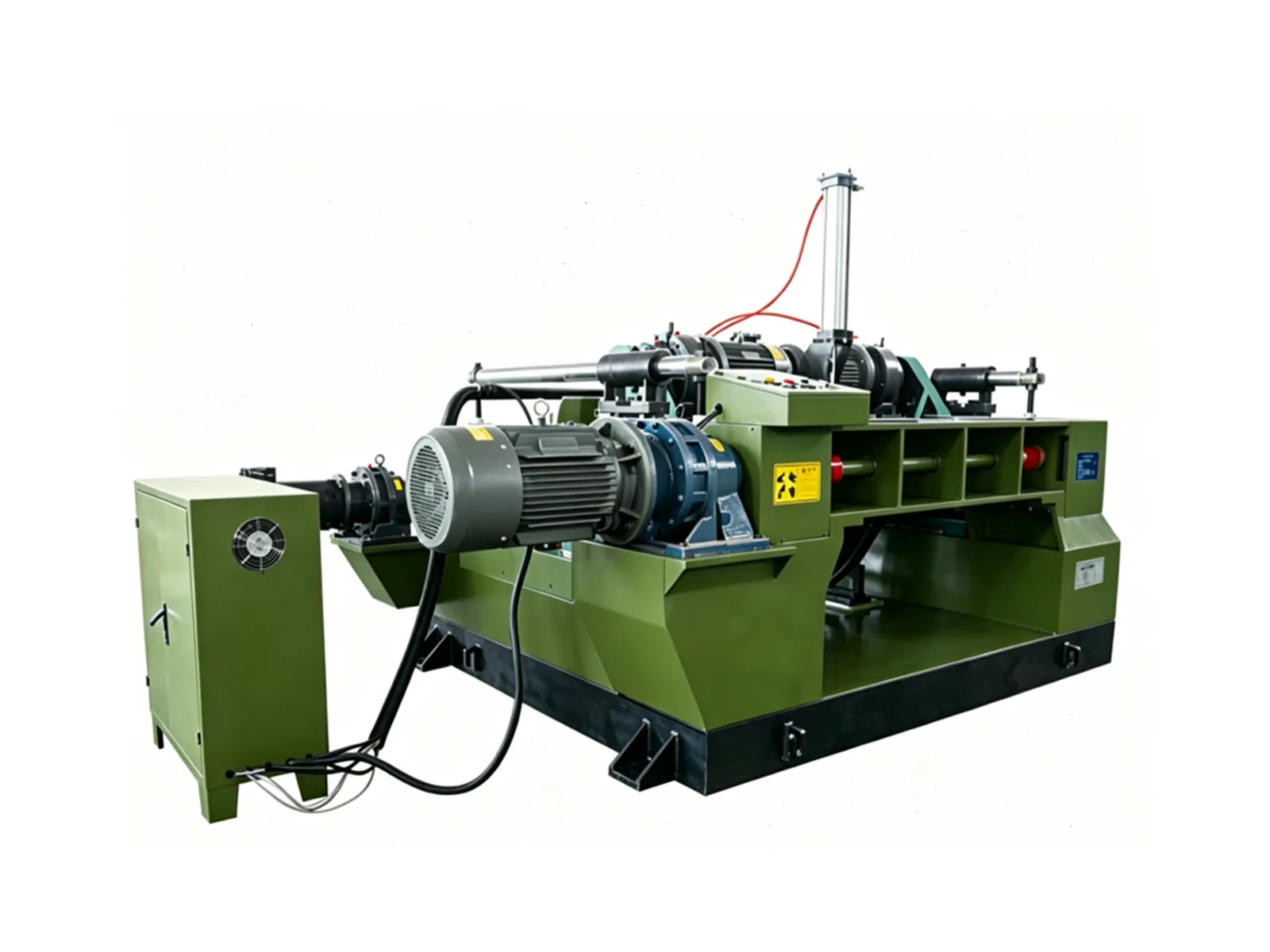

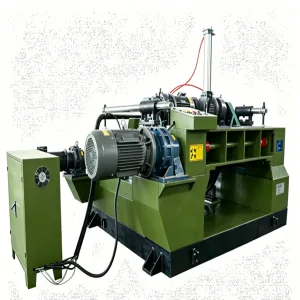

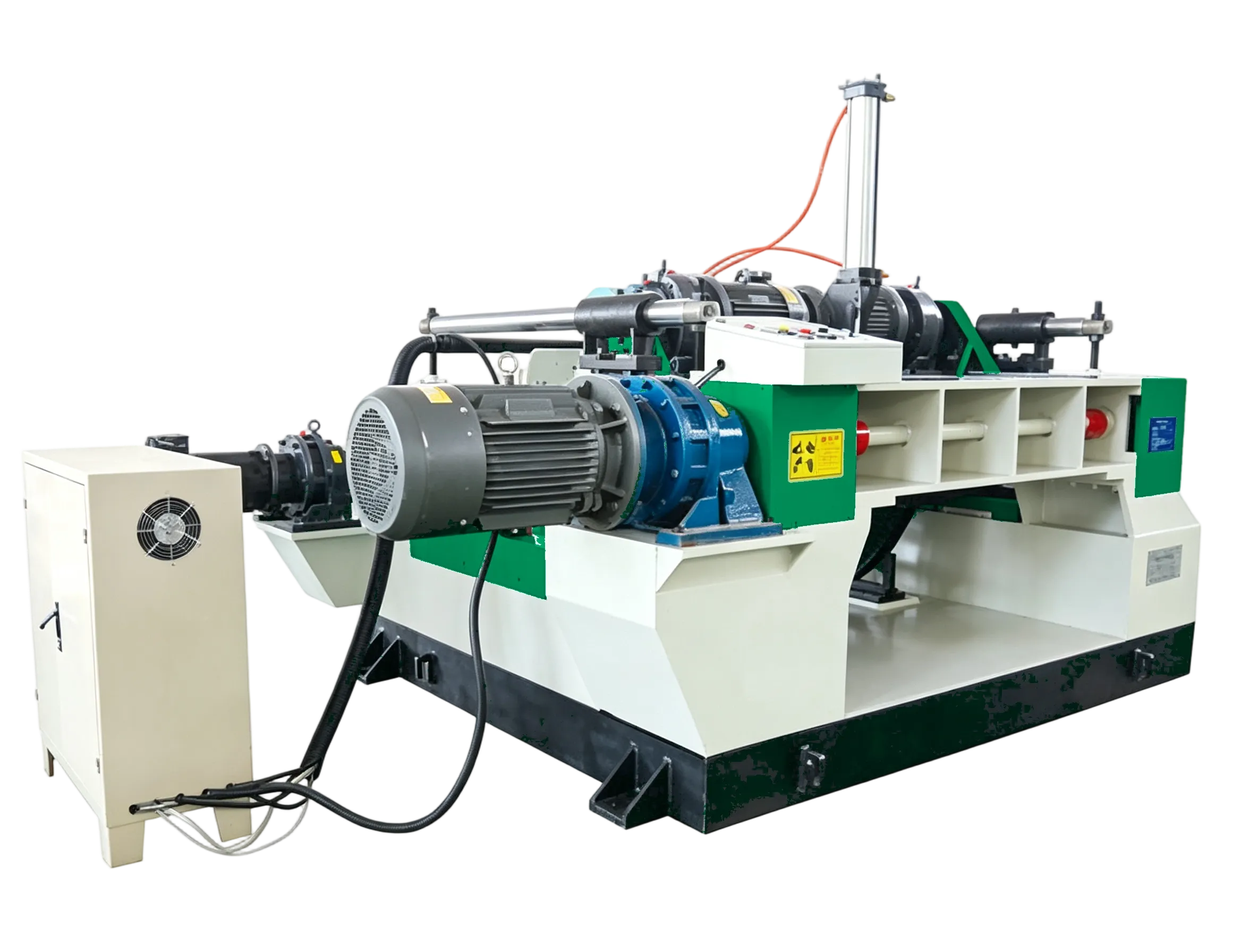

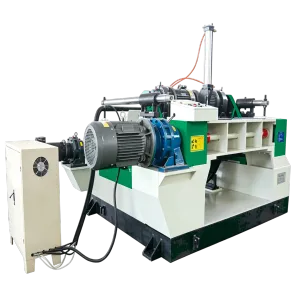

XQZ-1400A/2700A Cardless Rotary Lathe

· Ideal for peeling hardwoods: eucalyptus, rubber wood, etc.
· Cast iron knife carriage: anti-deformation, long service life & high peeling precision
· Dual front-rear nut feed drive: stable operation, uniform & smooth veneer thickness

Share：

Contact us Inquiry

Detailed Description

Detailed Description

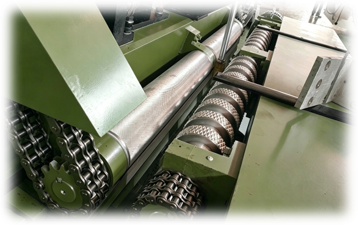

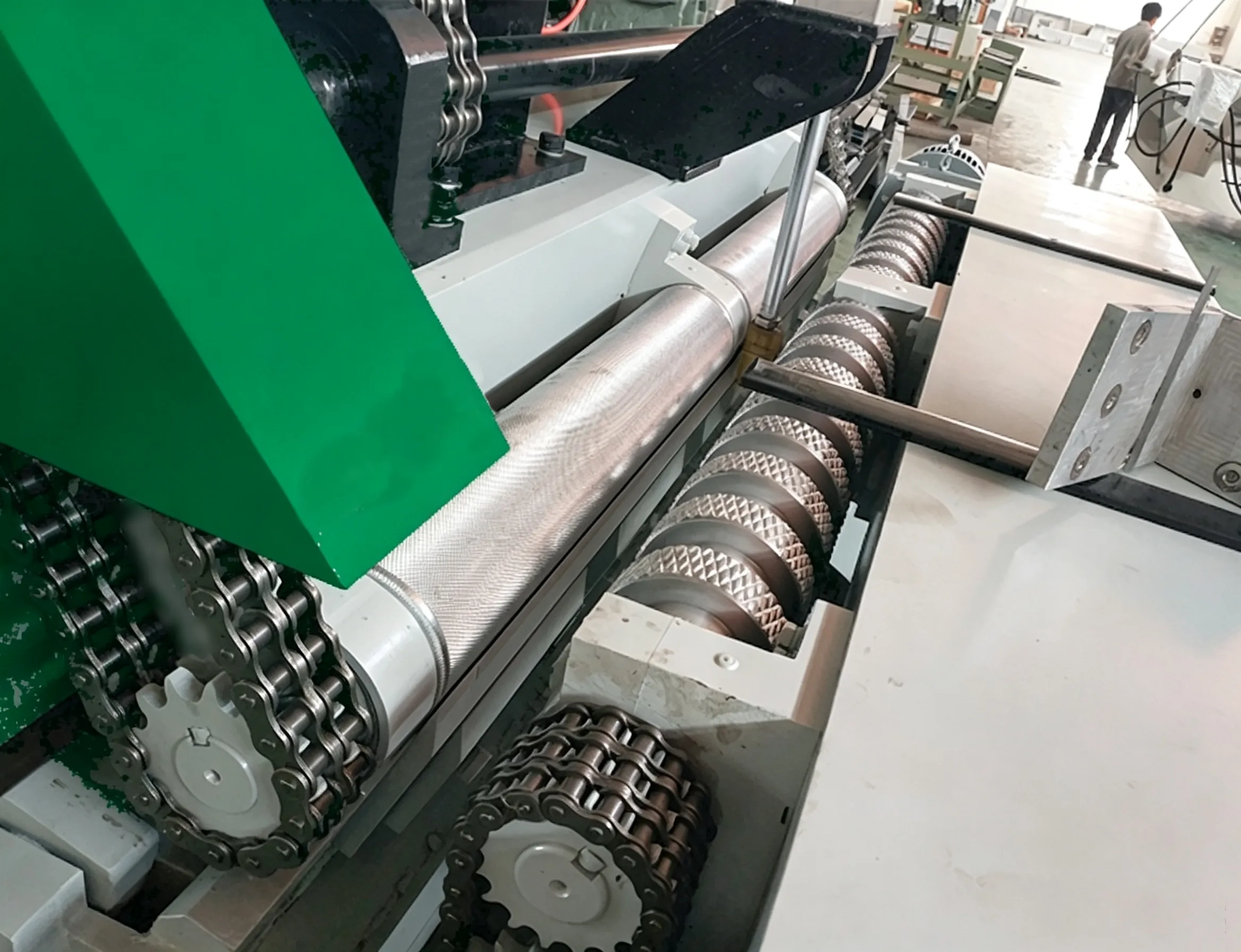

Chromium-plated rollers feature higher hardness and longer service life

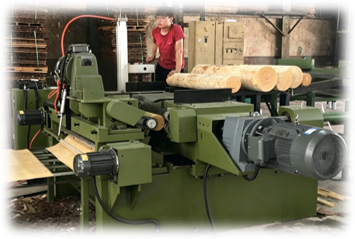

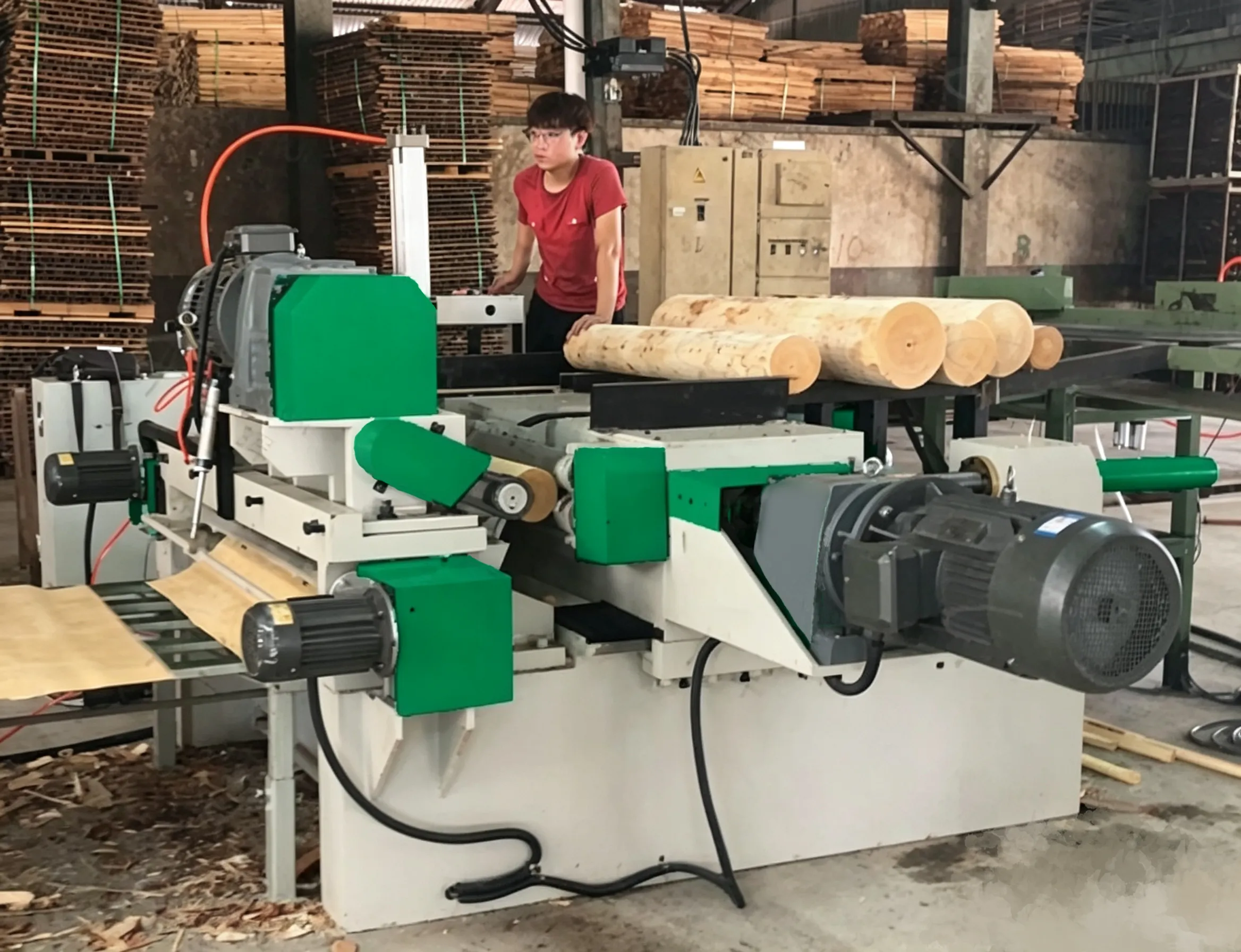

Suitable for rotary cutting of large-diameter hardwoods

Parameter DPZ-1400A DPZ-2700A
Equipment Model DPZ-1400A DPZ-2700A
main color green green
Overall dimensions 4000 × 2300 × 1200mm 5000 × 2300 × 1850mm
Weight 7500 kg 12000 kg
Maximum processing length 1300 mm 2600mm
Maximum Machining Diameter φ 600 mm φ 600 mm
Residual core wood diameter φ 30 mm φ 30 mm
Rotary cutting thickness 0.5-4.0 mm 0.5-4.0 mm
Tangential velocity of rotation 40-80 m / min 40-80 m / min
Hydraulic Station Motor 5.5 kw 5.5 kw
Wood core conveying motor 0.75 kw × 1 unt. 1.1 kw × 1 unt.
Power of Drum Motor 9.2 kw × 4 unt. 11 kw × 4 unt.
Feed motor power 11 kw Servo motor 11 kw Servo motor
Rubber rollers, board cutting motors 1.5 kw × 2 unt. 2.2 kw × 2 unt.
Drum Inverter 22 kw × 2 unt. 30 kw × 2 unt.

Related tags：

Previous page： DPZ-1400A/2700A Log debarker

Next page： ZDXQ-1300G/2600G Automatic Single Veneer Peeling Production Line

Parameter	DPZ-1400A	DPZ-2700A
Equipment Model	DPZ-1400A	DPZ-2700A
main color	green	green
Overall dimensions	4000 × 2300 × 1200mm	5000 × 2300 × 1850mm
Weight	7500 kg	12000 kg
Maximum processing length	1300 mm	2600mm
Maximum Machining Diameter	φ 600 mm	φ 600 mm
Residual core wood diameter	φ 30 mm	φ 30 mm
Rotary cutting thickness	0.5-4.0 mm	0.5-4.0 mm
Tangential velocity of rotation	40-80 m / min	40-80 m / min
Hydraulic Station Motor	5.5 kw	5.5 kw
Wood core conveying motor	0.75 kw × 1 unt.	1.1 kw × 1 unt.
Power of Drum Motor	9.2 kw × 4 unt.	11 kw × 4 unt.
Feed motor power	11 kw Servo motor	11 kw Servo motor
Rubber rollers, board cutting motors	1.5 kw × 2 unt.	2.2 kw × 2 unt.
Drum Inverter	22 kw × 2 unt.	30 kw × 2 unt.
