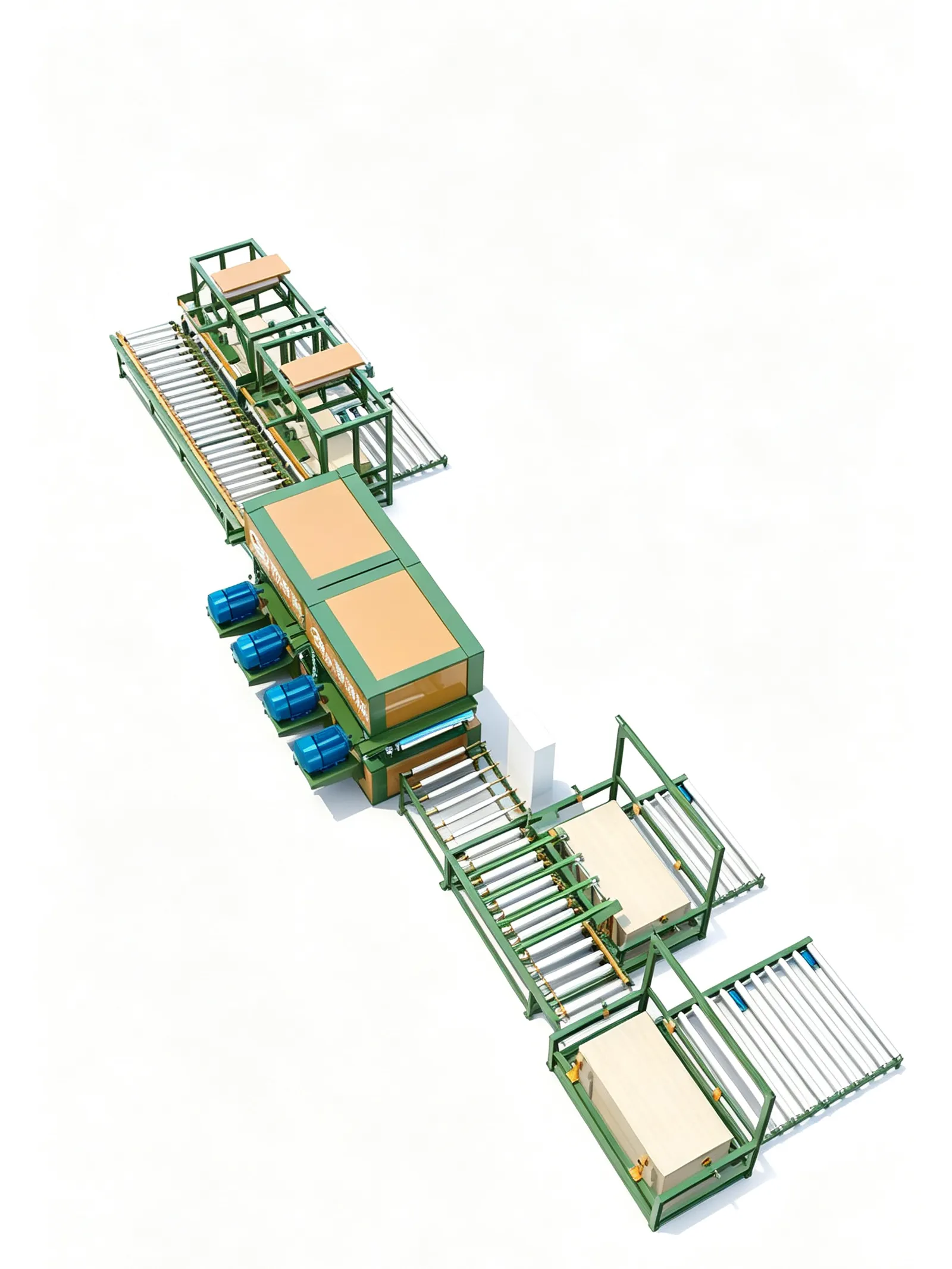

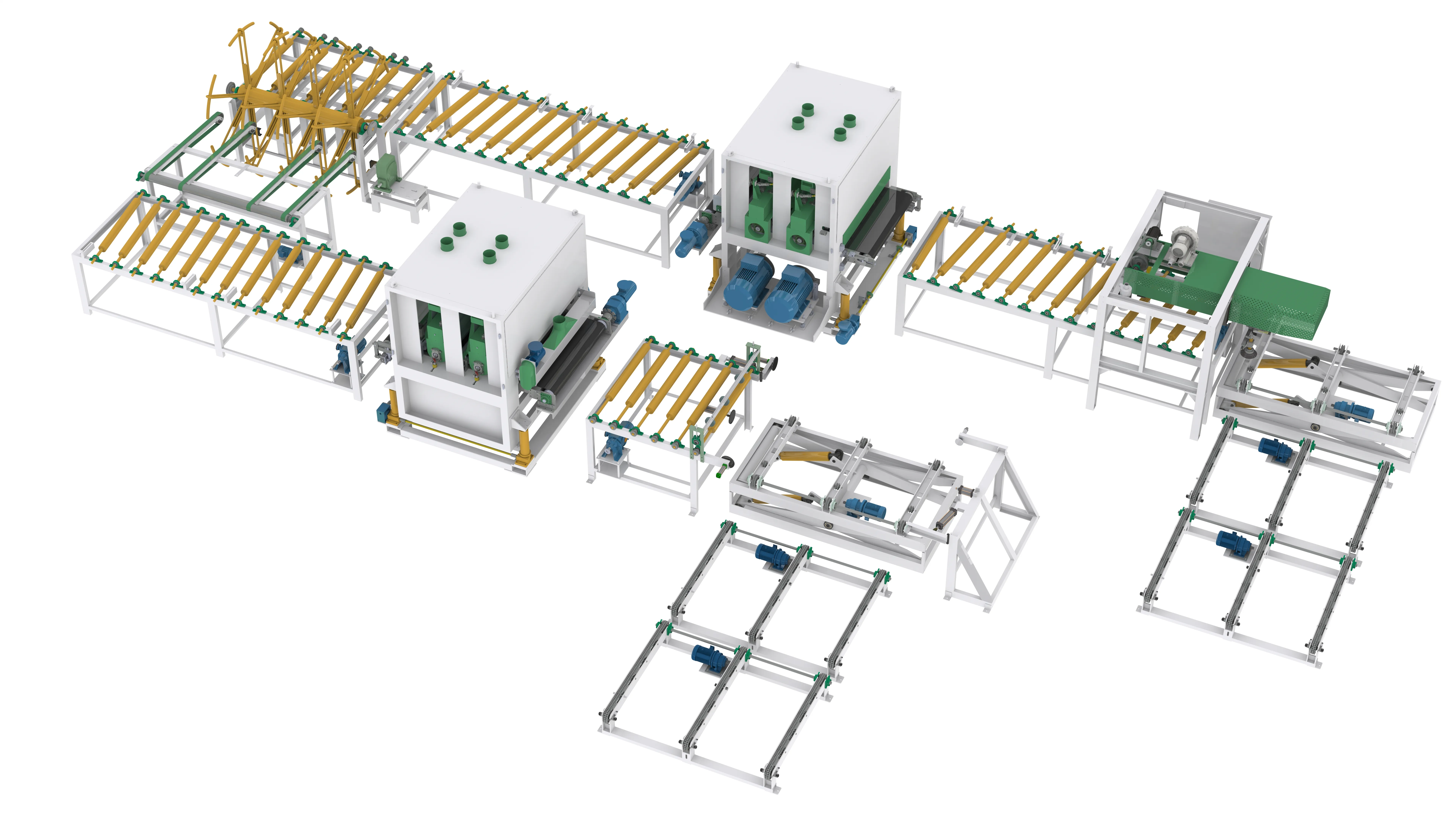

Fully automatic sanding production line

1.Automatic loading and unloading.
2.Sands one side, auto-flips the panel, sands the other side.
3.Fast sanding speed, high surface smoothness, and high sanding precision.
4.Stable, efficient double-sided finishing for consistent board quality.

Share：

Contact us Inquiry

Detailed Description

Detailed Description

Product Parameters
No. Parameter Item BSGN5213R-R BSG5213R-P BSG5213R-RP
1 Equipment Model BSGN5213R-R BSG5213R-P BSG5213R-RP
2 Processing width ≤1300 mm ≤1300 mm ≤1300 mm
3 Thickness opening volume 2.5~100 mm 2.5~100 mm 2.5~100 mm
4 Processing length >1000 mm ≥750 mm ≥850 mm
5 Processing precision +0.1 mm +0.1 mm +0.1 mm
6 Sand belt speed 22.5 m/s 22.5,16 m/s 22.5,18.5 m/s
7 Sand belt size 2800×1350 mm 2800×1350 mm 2800×1350 mm
8 Auto-feed system:Frequency conversion 5~30 m/min 5~30 m/min 5~30 m/min
9 Power of auto-feed motor 11 kw 11 kw 11 kw
10 Power of worktable elevating system 1.1 kw 1.1 kw 1.1 kw
11 Power of sand belt motor 75+55 kw 55+37 kw 55+45 kw
12 Total installed power 142.47 kw 100.97 kw 108.97 kw
13 Overall dimension 3.1×2.82×2.5 m 2.7×2.82×2.5 m 2.9×2.82×2.5 m
14 Net weight 11000 kg 11000 kg 11000 kg
