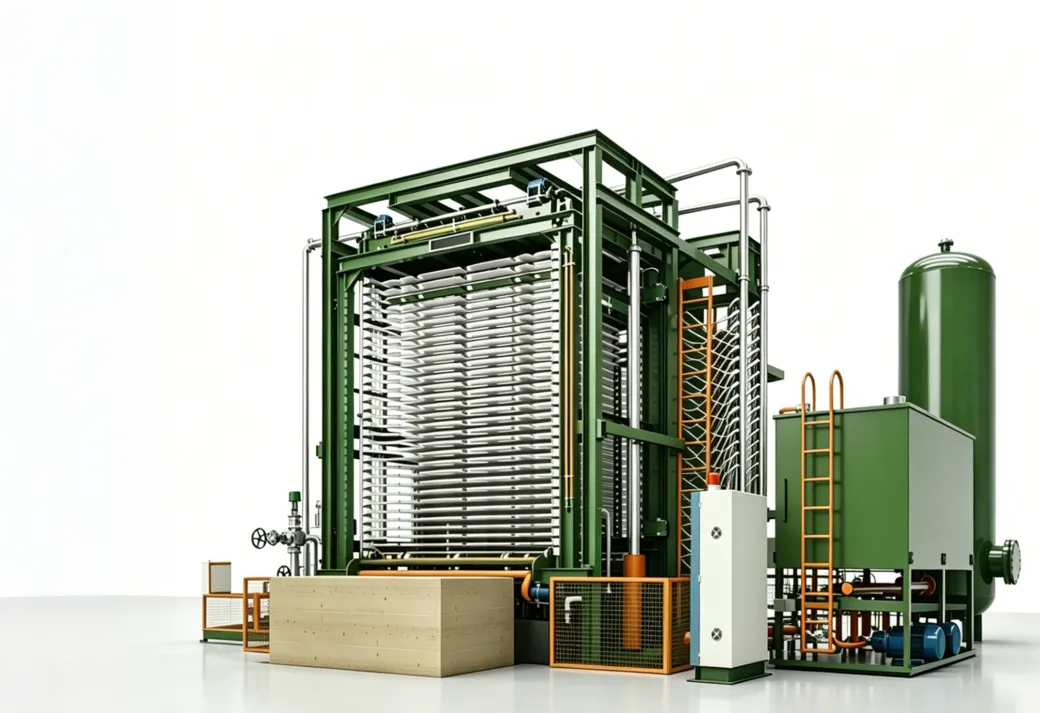

RYZ-30C-800T 30-Layer Hot Press Workstation

    RYZ-30C-800T 30-Layer Hot Press Workstation

      • -Even heat pressing for strong lamination
        • -Auto temperature control, unattended work
          • -Thick frame, no deformation under heavy pressure
            • -Customizable to meet all production needs
    Inquiry

Detailed Description


Product Parameters

No.Parameter ItemRYZ-30C-800T (Host)Board Feeding Machine (30 Layers)Board Unloading Machine (30 Layers)
1Main ColorGreenGreenGreen
2Overall Dimensions3500 × 1370 × 6820 mm4220 × 2020 × 10170 mm4220 × 1000 × 10970 mm
3Total Weight90 T10 T8.5 T
4Nominal Pressure800 T//
5Number of Layers30 Layers30 Layers30 Layers
6Opening Distance70/80 mm70/80 mm70/80 mm
7Hot Press Plate Size1370 × 2700 × 52 mm//
8Hot Press Plate Thickness42 / 52 mm//
9Number of Hot Press Plates31 pcs//
10Main Oil Cylinderφ260 mm × 2450 mm × 6 pcsFeeding Drive: Hydraulic MotorFeeding Drive: Hydraulic Motor
11Lifting Oil Cylinderφ140 mm × 2450 mm × 2 pcsφ140 mm × 4300 mm × 2 pcsφ120 mm × 4600 mm × 2 pcs
12Working Stroke2450 mm4300 mm4600 mm
13Working Pressure21 kg/cm²//
14Closing Speed15 m/min18 m/min18 m/min
15Finished Product Size4 × 8 ft (1220 × 2440 mm)4 × 8 ft (1220 × 2440 mm)4 × 8 ft (1220 × 2440 mm)
16Air Intake Method of Hot Press PlateDouble Inlet & Double Outlet//
