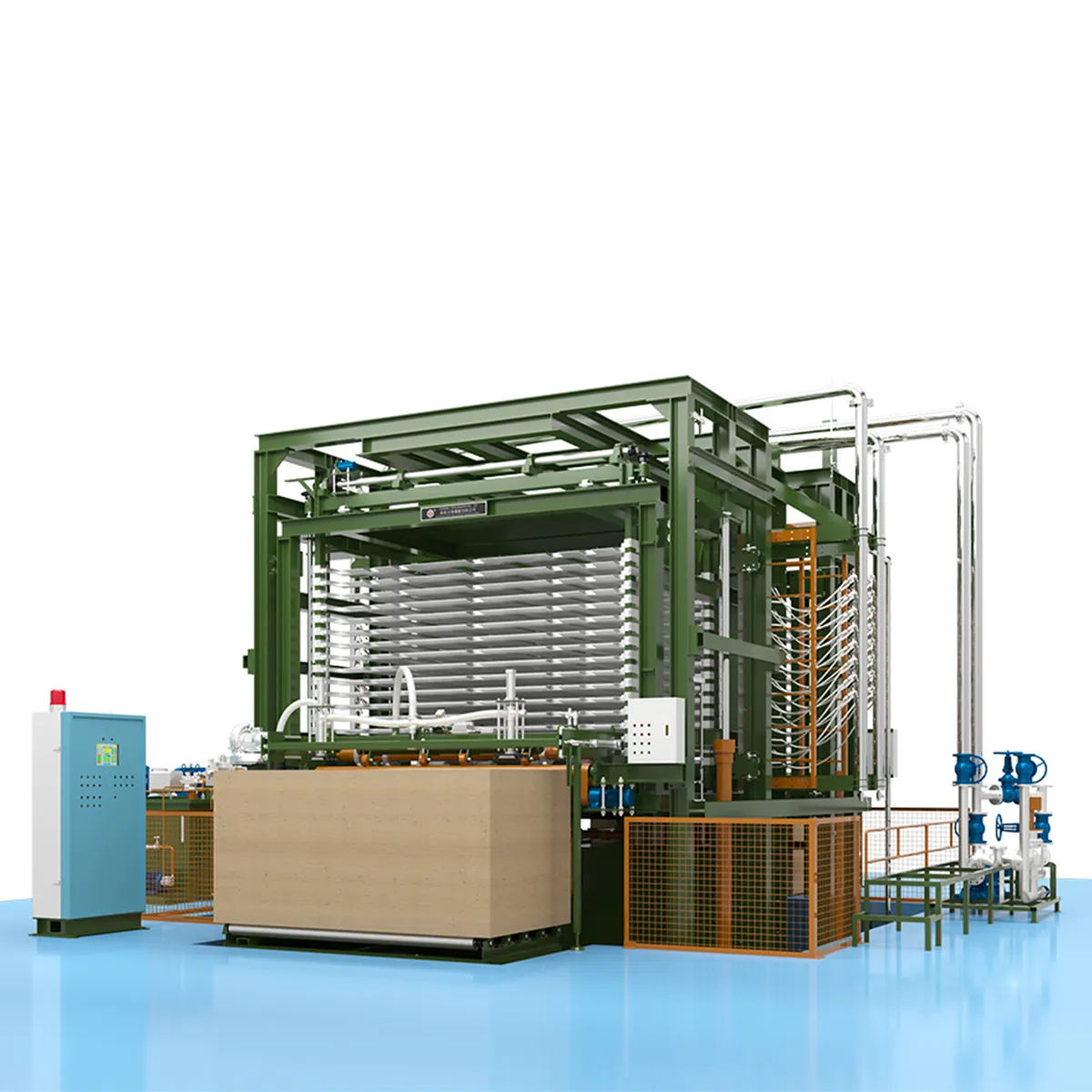

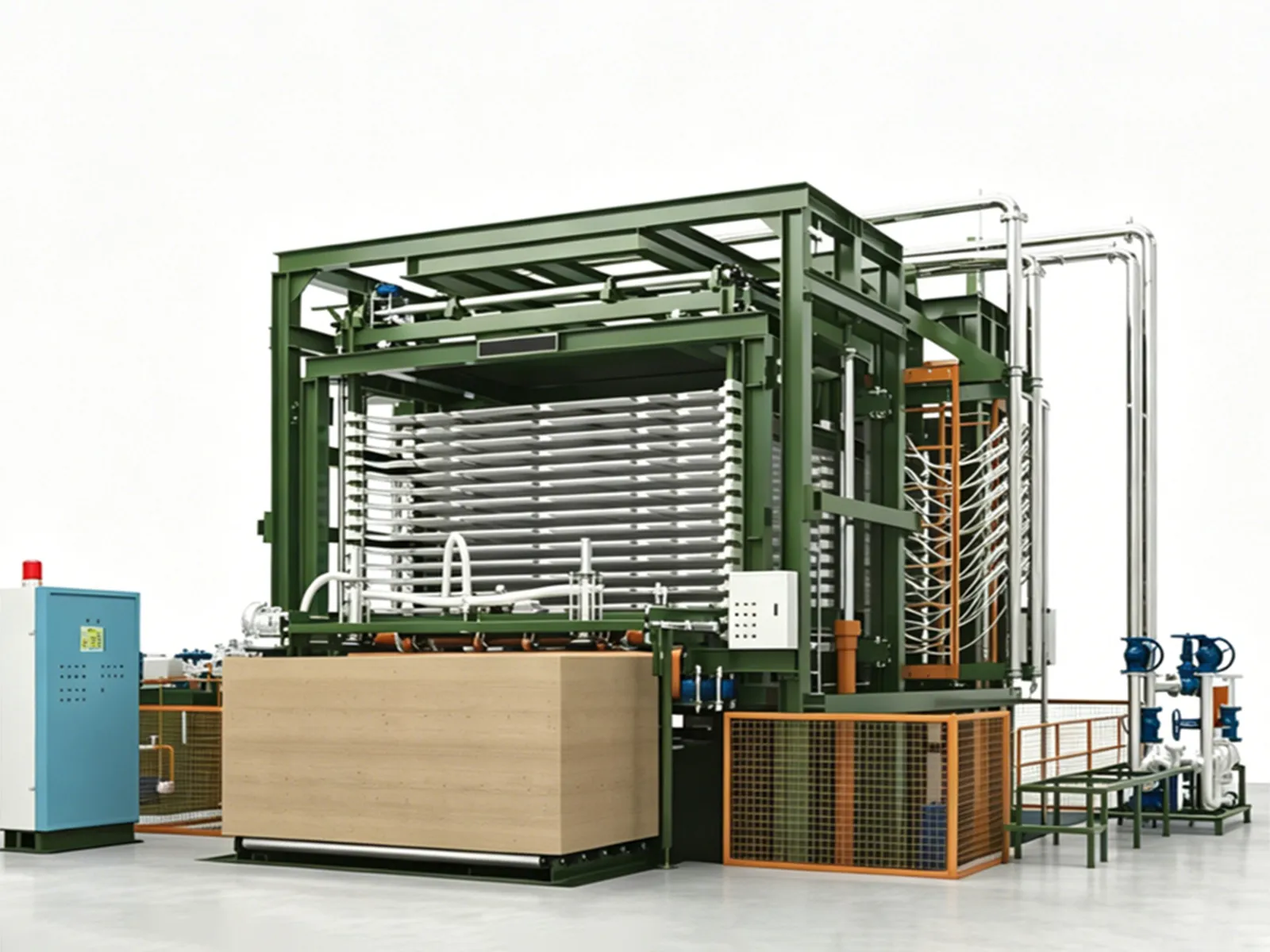

15‑layer press

    15‑layer press

    JDRY-1200T-15LNominal pressure12000kN Platen sizeL:4200*W:1370*H:65mmFeeding modeDouble in and out Product size (mm)1230*2700*13/15/181230*2850*13/15/181230*3000*13/15/181230*3050*13/15/181230*3900*13/15/18Open-seat80 mmStory number15层Main oil cylinder of press$260*1350mm*8 pcsPress lifting cylinder$260*1350mm*2 pcsWorking pressure(mm)1200mmWorking pressure(kg/cm2)21kg/cm2Closing speed(mm/s)3.6m/minOverall size(mm)L:5650*W:1405*H:4750mmControl hydraulic stationFully sealed dust-free designTotal weight90TJDRY-1200T-15L-ZBJProduct dimensions(mm)11230*2700*13/15/181230*2850*13/15/18123...
  • Share：
    • Contact us Inquiry


JDRY-1200T-15L

Nominal pressure12000kN

 Platen size

L:4200*W:1370*H:65mm

Feeding modeDouble in and out

 Product size (mm)

1230*2700*13/15/18

1230*2850*13/15/18

1230*3000*13/15/18

1230*3050*13/15/18

1230*3900*13/15/18

Open-seat80 mm

Story number

15层

Main oil cylinder of press$260*1350mm*8 pcsPress lifting cylinder$260*1350mm*2 pcs
Working pressure(mm)1200mmWorking pressure(kg/cm2)21kg/cm2
Closing speed(mm/s)3.6m/min

Overall size(mm)

L:5650*W:1405*H:4750mm
Control hydraulic stationFully sealed dust-free designTotal weight90T




JDRY-1200T-15L-ZBJ

Product dimensions(mm)

11230*2700*13/15/1

81230*2850*13/15/18

1230*3000*13/15/18

1230*3050*13/15/18

1230*3900*13/15/18

Open-seat

80mm

Story number15层

Ram& Cylinder(Frames Up)

090*2300mm*2 pcs

Working stroke(mm)2150mm

Lifting speed

3.6m/min

Overall dimensions(mm)L:4220*W:2020*H:5500 mmDrive into the boardDouble hydraulic motor
Total weight(T)
11T






JDRY-1200T-15L-XBJ

Product dimensions(mm)

1230*2700*13/15/18

1230*2850*13/15/18

1230*3000*13/15/18

1230*3050*13/15/18

1230*3900*13/15/18

Open-seat

80mm

Story number15层

Ram& Cylinder(Frames Up)

$90*2700mm*2 pcs

Working stroke(mm)2550mm

Lifting speed

3.6m/min

Overall dimensions(mm)L:4220*W:1000*H:5730 mmThe board driver hydraulic motor
Total weight(T)7T
