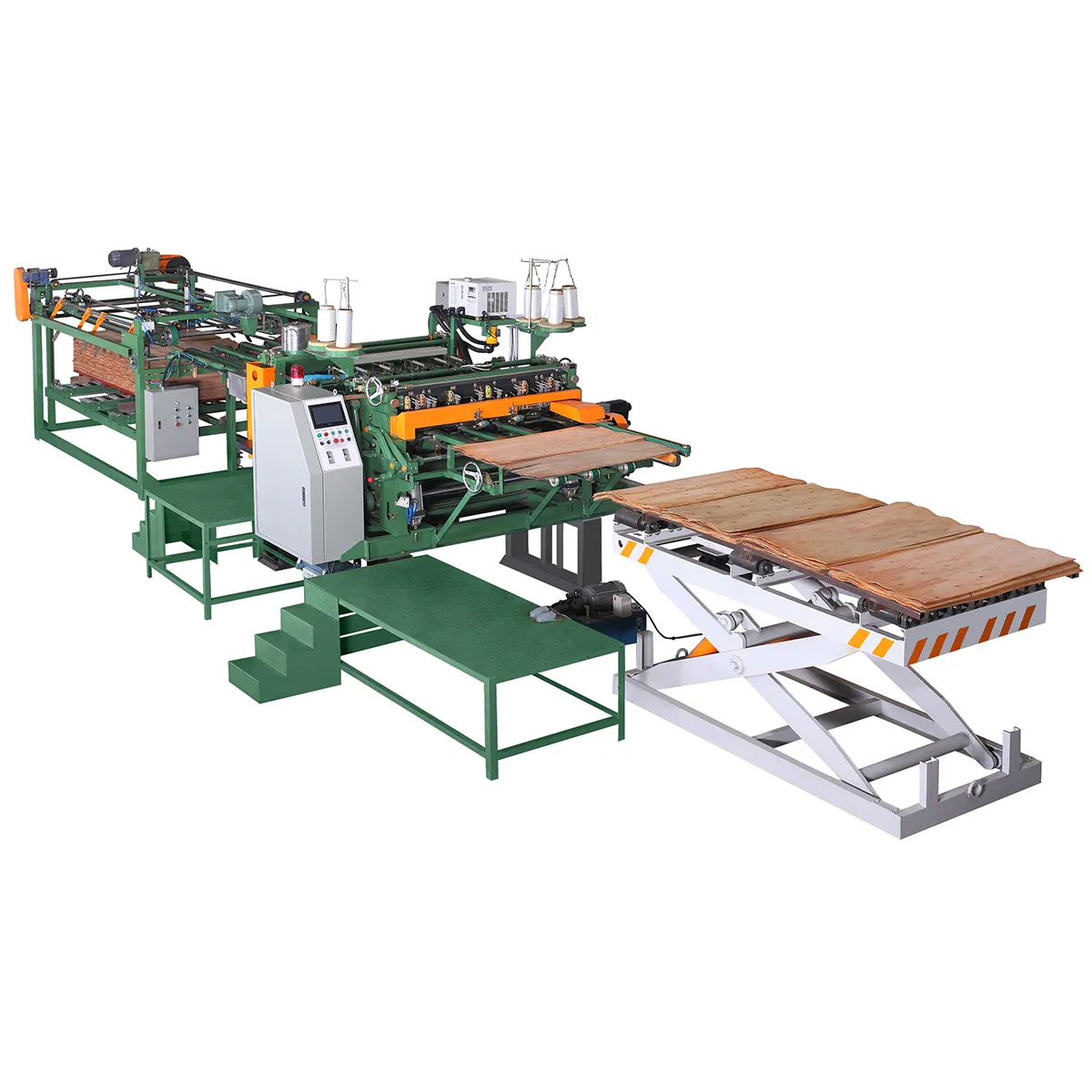

Fully Automatic 4‑Foot Cross‑Splicing Workstation

    Fully Automatic 4‑Foot Cross‑Splicing Workstation

    The middle spicing machine is an indispensable automatic equipment for plywood production.
  • Share：
    • Contact us Inquiry

The middle spicing machine is an indispensable automatic equipment for plywood production.The comprehensiveperformance of the fifth generation" full servo middle spicing machine" of Jiding has always beenin the leadingposition of domestic similar equipment,and has been imitated and never surpassed. It has large output(splicing 4*8 feetplates per hour can reach more than 350 pieces,high precision,stable quality and low failure.


veneer splicing machine(fifth generation full servo) main performance parameters

Feeding speed 30‑35m/min

Synchronous splicing

High precision servo splicing

Amount of production (4*8 feet)350 pieces/1h

Cutting and chip removal

High precision servo control


Shearing accuracy of random ruler±0.02mm

Fixed length shear

High precision servo control


Fixed length shearing accuracy±1mmHigh speed collecting function of 4x4 feet boardThis function is available and can continuous high speed collect board
Feeding thickness detection functionThis function is available Hot melt adhesive CNC automatic non‑stop cutting functionThis function is available and the cutting amount speed of the splicing and Noneed to stop to add increases or decreases automatically with the glue
Detection function of insufficient veneer lengthThis function is available and the size can be adjusted arbitrarily

Material utilization:

Wasted materials = Amount of production on duty x Shearing error

Due to the fixed length shear accuracy is ±1 mm, the finished 4x8 ruler board can be accurately measured within 2480mm~2490mm, No waste.

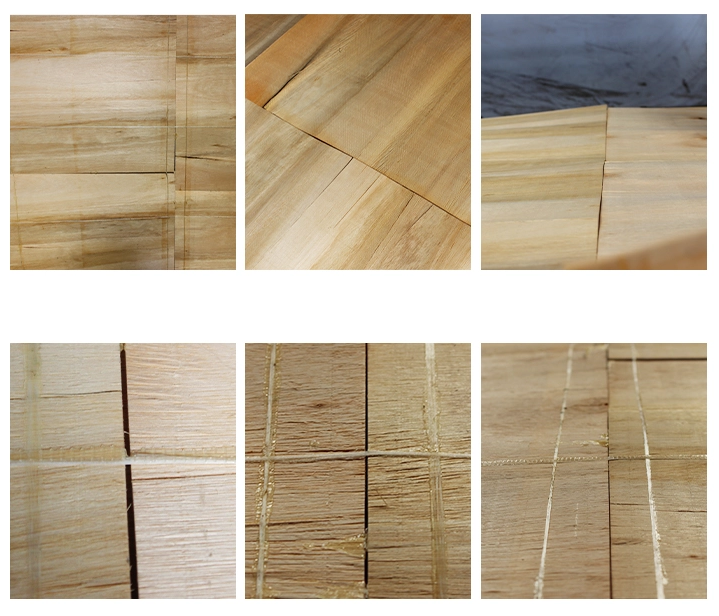

PRODUCTION EFFECT
