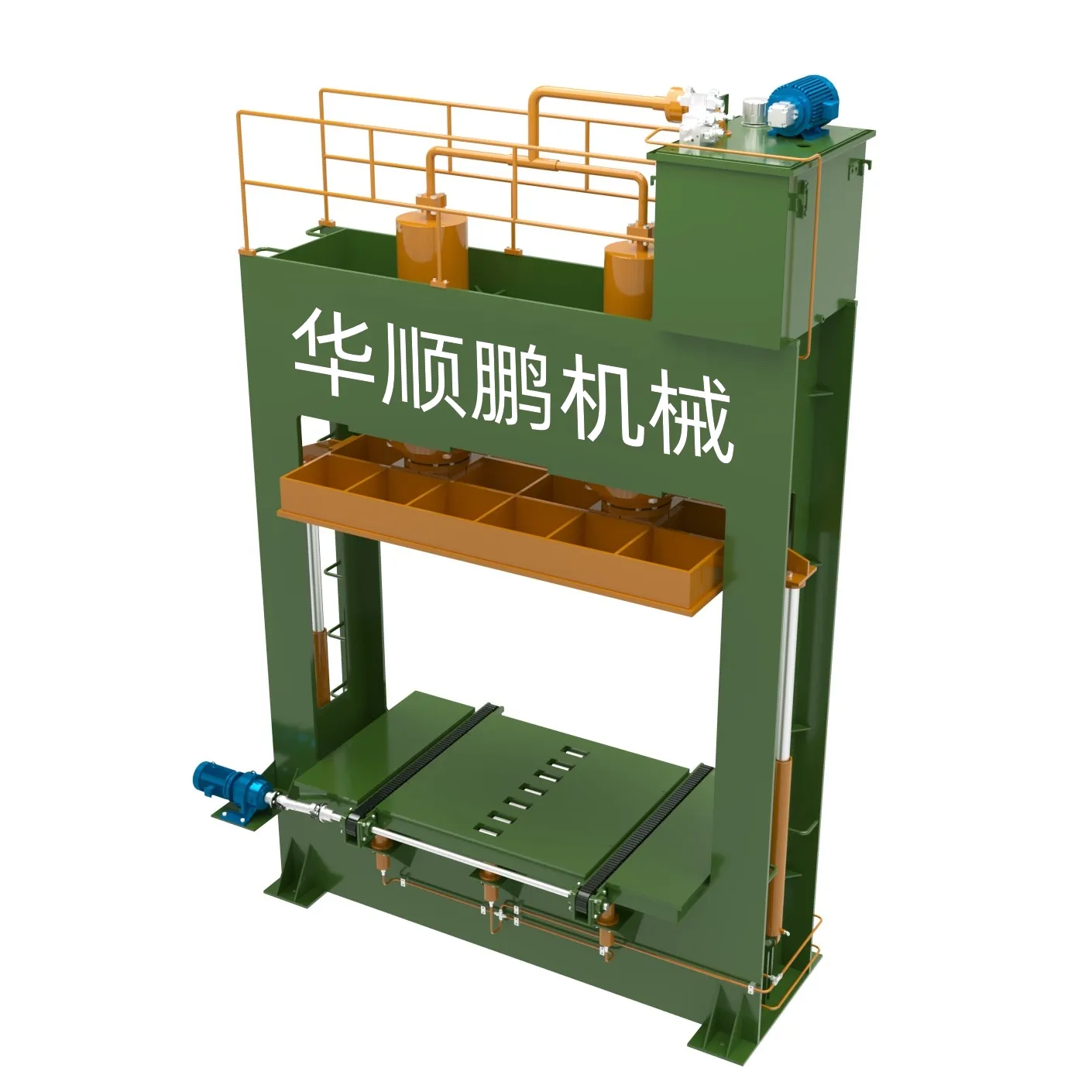

400T Cold Press Machine

1.Suitable for pre-pressing decorative boards, plywood and blockboards.
2.Adopting advanced technology, it runs automatically stably.
3.Hydraulic and electrical systems are strictly tested for good quality.
4.Hardened cylinders with leak-proof seals offer long service life and low maintenance.
5.Adjustable pre-pressing timer
6.Closing speed: 1.0m/min max
7.All-steel welded frame
8.Safe & stable operation
9.Customizable pressure tonnage

Share：

Contact us Inquiry

Detailed Description

Detailed Description

Product Parameters
No. Parameter Item Specification
1 Equipment Model LYJ-400T
2 Main color Green
3 Overall dimensions 3500 × 2100 × 4500 mm
4 Pressurization capacity 400 T
5 Maximum pressure 10-16 kg/cm²
6 Pressure plate size 2700 × 1370 mm
7 Maximum processing size 4 × 8 ft
8 Processing Height 400-1300 mm
9 Hydraulic cylinder stroke 900 mm
10 Diameter of cylinder (down) 400 × 2 pcs
11 Diameter of cylinder (up) 100 × 2 pcs
12 Oil pump motor 7.5 kw
13 Conveyor Motor 4 kw
