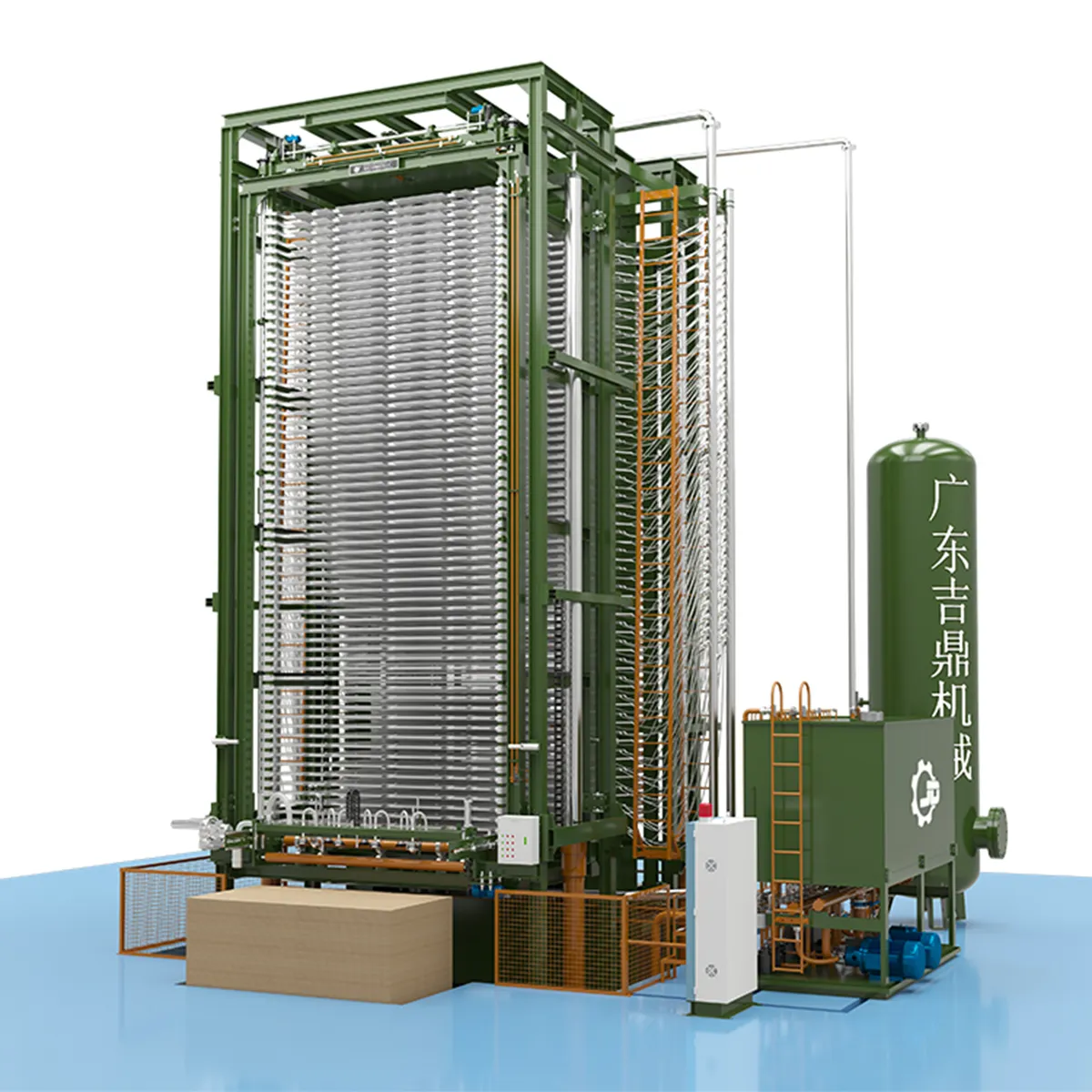

65 story automatic press

    65 story automatic press

    Applicable to hot pressing of panel cores for furniture boards, general‑purpose boards, melamine‑based substrates, and flooring base materials.
  • Share：
    • Contact us Inquiry


JDRY-800T-65L

Nominal pressure8000kN

 Platen size

L:2700*W:1370*H:42mm

Feeding modeDouble in and out

 Product size (mm)

3*6尺、4*8尺


Open-seat70 mm

Storynumber

65层

Diameter of plunger case(mm)Q320*4700mm*4 pcs Working stroke(mm)4550mm
Working pressure(kg/cm2)21kg/cm2Closing speed(m/min)15m/min
Overall size(mm)L:3590*W:1370*H:10600mm

Nitrogen tank size

p1640*6750mm (12m3) 1pcs
Weight of nitrogen tank6000kgHydraulic station sizeL:4000*W:1500*H:2800mm
Tank volume9m3Total weight of hydraulic station6500kg
Low pressure pump motor22KW*2 pcsHigh-pressure pump motor5.6KW*1 pcs
Elevatormotor2.2KW*1 pcsWhole machine total power(kw)51.8KW
height of workshop10000mmDepth of foundation pit9500mm
Total weight135T



JDRY-800T-65L-ZBJ

Product dimensions(mm)3*6、4*8

Open-seat

70mm

Story number65层

Ram& Cylinder(Frames Up)

$200*7450mm*2 pcs (Main)

Working stroke(mm)7300mm

Lifting speed

15m/min

Overall dimensions(mm)L:4220*W:2020*H:16800mmDrive into the boardDouble hydraulic motor
Total weight(T)18T




JDRY-800T-65L-XBJ

Product dimensions(mm)3*6、4*8

Open-seat

70mm

Story number65层

Ram& Cylinder(Frames Up)

$180*7450mm*2 pcs (Main)

Working stroke(mm)7800mm

Lifting speed

15m/min

Overall dimensions(mm)L:4220*W:2020*H:17800mmDrive into the boardDouble hydraulic motor
Total weight(T)15T



Continuous product improvement, when the appearance and parameters of change,are subject to real sample, witnout notice.
